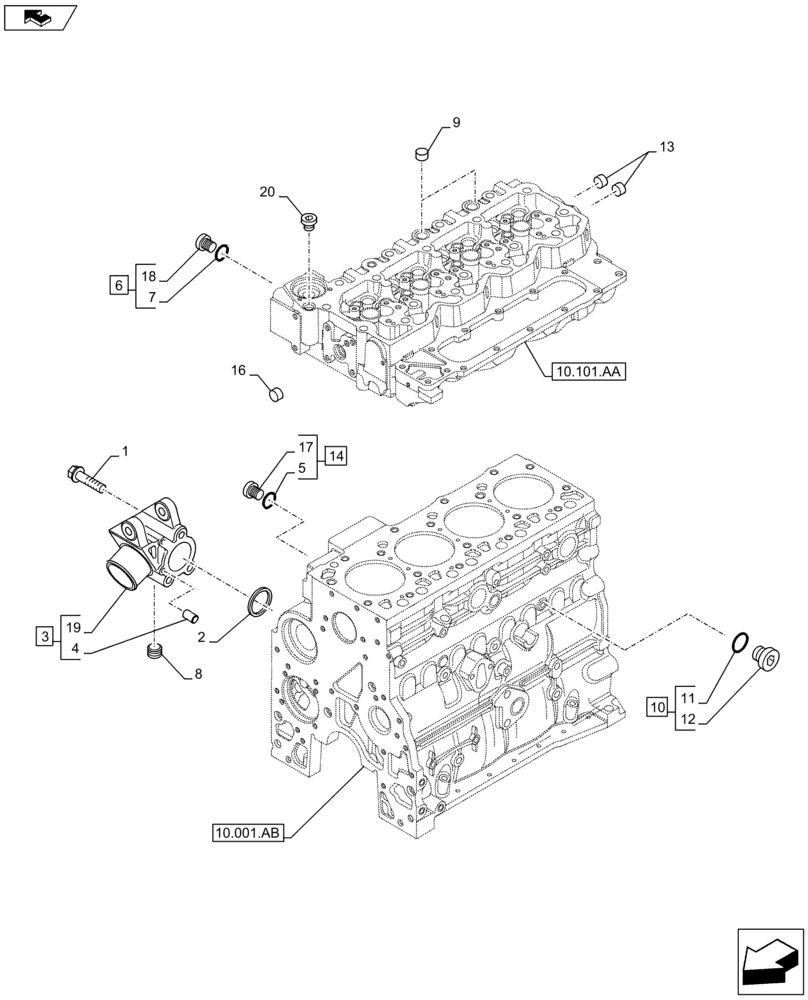

Запчасти Case F4HFE413P A001 (10.400.AE) - ENGINE, COOLING SYSTEM LINE (10) - ENGINE

1

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2855776

SUPPORT

ASSY, Incl 4, 19

1шт.

4

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

1шт.

5

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

6

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 7, 18

1шт.

7

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

8

2852511

PLUG,R3/8" - 18 NPTF, M8, 12.7mm L

1шт.

9

4895078

PIPE PLUG,1/2"-14

2шт.

10

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 11, 12

1шт.

11

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

13

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

1шт.

13

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

14

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 5, 17

1шт.

16

4895079

PIPE PLUG,3/4"-14

1шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.

19

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

20

2854491

PLUG,Taper Pipe, Hex, 1/4" - 18 x 14.224mm

1шт.
