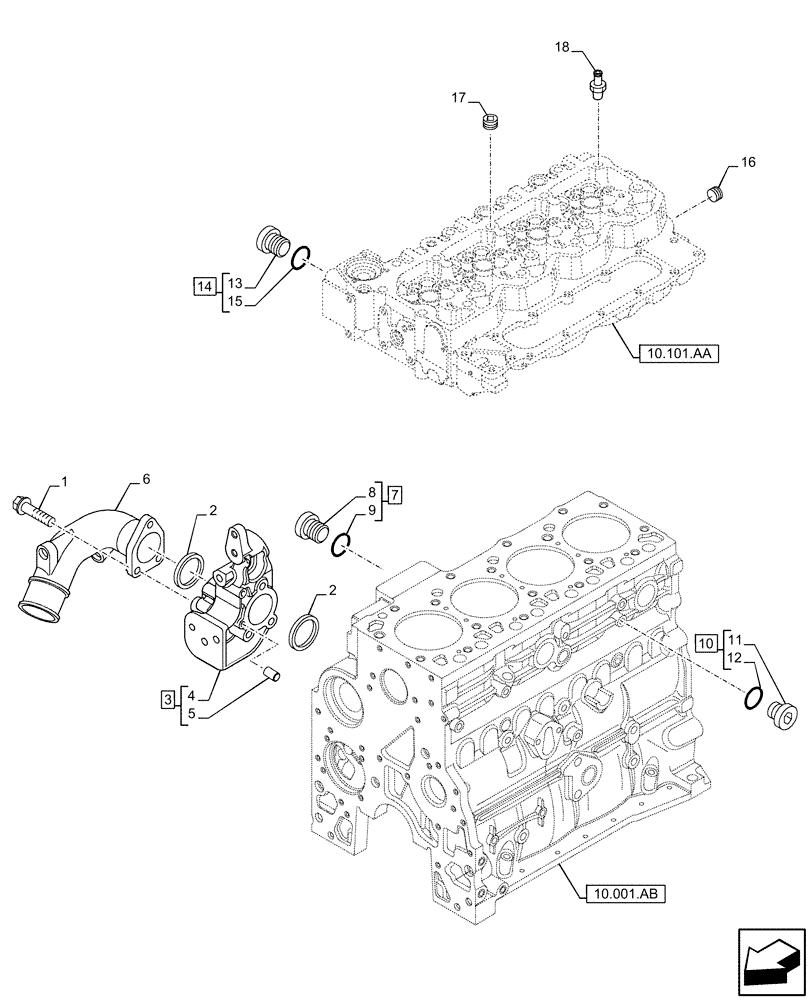

Запчасти Case F4HFE413N B007 (10.400.AE) - COOLANT HEATING LINES (10) - ENGINE

1

2852325

SCREW

1шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

47536450

SUPPORT

1шт.

4

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

5

98405182

DOWEL

2шт.

6

2852394

TUBE,44 mm ID, 48 mm OD, 55 mm Length

3шт.

7

4895392

HEX SOCKET PLUG,M18 x 1.5

2шт.

8

4895394

HEX SOCKET PLUG,M18 x 1.5

1шт.

9

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

10

4895623

HEX SOCKET PLUG,M16 x 1.5

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

12

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

2шт.

15

4895082

O-RING,19.3mm ID x 2.2mm Width

2шт.

16

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

17

4895078

PIPE PLUG,1/2"-14

3шт.

18

47565455

FITTING,M12 x 1.5 x 20mm D

1шт.
