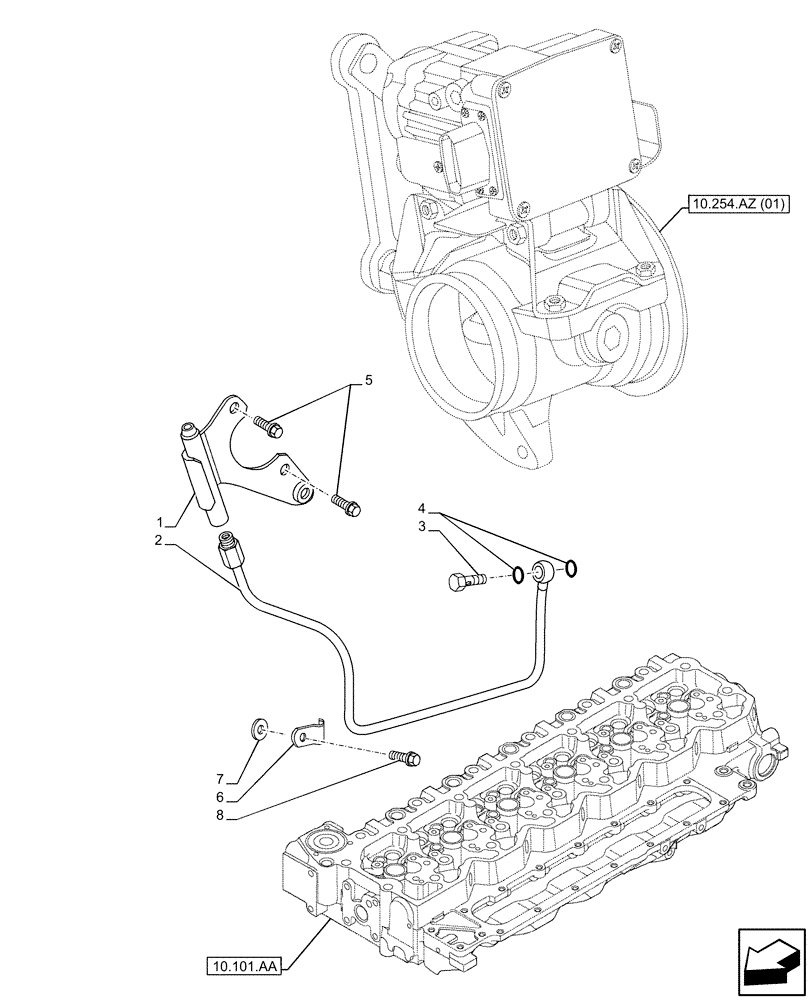

Запчасти Case F4HFE413N B007 (10.254.AZ[03]) - ENGINE EXHAUST BRAKE, PIPE, WATER SUPPLY (10) - ENGINE

1

47530278

BRACKET

1шт.

1

47669693

BRACKET

1шт.

2

47669689

PIPE

1шт.

3

4893096

BANJO BOLT,Hex, M10 x 1 x 19mm

1шт.

4

4899010

SEALING WASHER,10.2mm ID x 13.4mm OD x 1mm Thk

2шт.

5

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

6

2852819

CLAMP

ASSY, Incl 7

1шт.

6

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

1шт.

7

13605715

SPACER,9mm ID x 18mm OD x 5mm L

1шт.

8

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.
