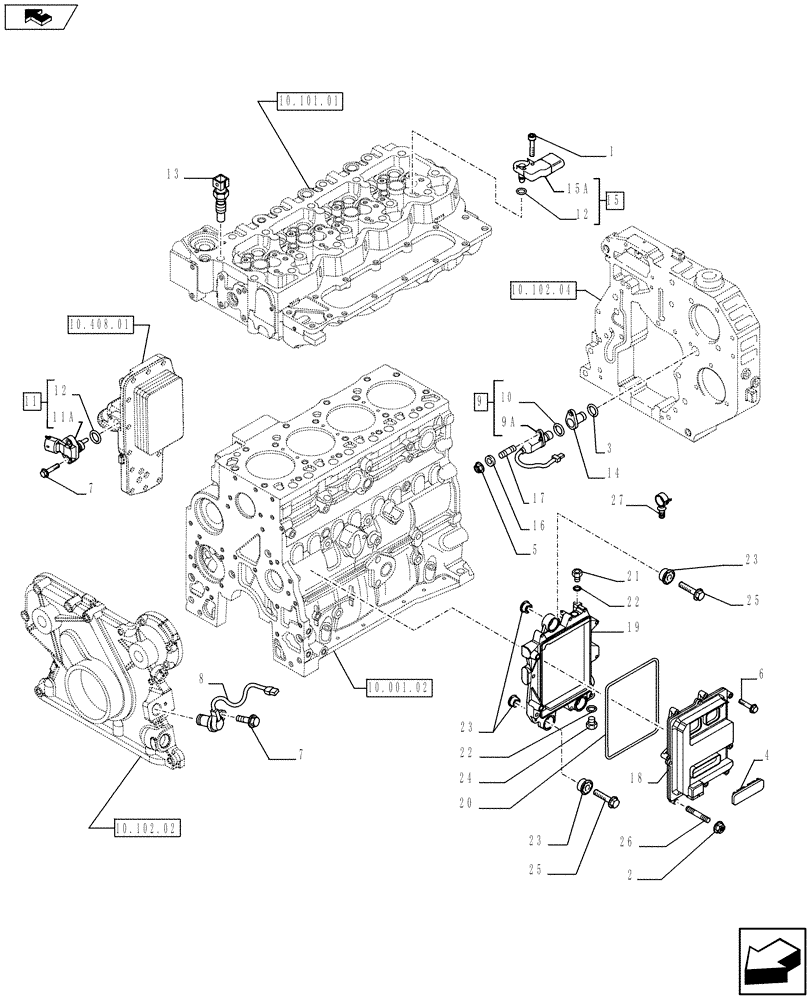

Запчасти Case F4HFE413J A002 (55.640.01) - ELECTRONIC INJECTION (55) - ELECTRICAL SYSTEMS

1

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

1шт.

2

4899057

FLANGE NUT,M6

1шт.

3

2852817

O-RING,1.7mm Thk x 23.5mm ID

D. 23.5mm SP=1.7

1шт.

4

2852825

PLUG,100mm x 40mm L

1шт.

5

2854282

NUT,M6 x 1

M6 x 1

1шт.

6

2852818

SCREW,Hex, M6 x 1 x 30mm

M6 x 30

7шт.

7

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

8

4890189

SENSOR

1шт.

9

4890190

SENSOR

ASSY

1шт.

9a

NSS

NOT SOLD SEPARAT

1шт.

10

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

17.17 x 1.78

1шт.

11

4890193

SENSOR

Oil Pressure &Temperature, ASSY

1шт.

11a

NSS

NOT SOLD SEPARAT

1шт.

12

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

13

4897224

SENSOR

Temperature

1шт.

14

4892255

HOUSING

1шт.

15

2852821

SENSOR

Air Temperature / Pressure, 4 wire, ASSY

1шт.

15a

NSS

NOT SOLD SEPARAT

1шт.

16

4899124

WASHER

1шт.

17

4895157

STUD

1шт.

18

2854594

ECU

1шт.

18

2854594R

REMAN-MODULE

Reman for New PN 2854594

1шт.

18

2854594C

CORE-MODULE

Return Number

1шт.

19

2854596

BRACKET

1шт.

20

2854079

GASKET,6.45mm Thk

1шт.

21

4896542

HYD CONNECTOR,M12 x 1.5 ORB x 6 ORFS

M12 x 1.5

1шт.

22

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

D. 12 x 17 mm SP=1.7

2шт.

23

2855150

INSULATOR BLOCK

6шт.

24

4890964

FITTING,M12 x 1.5

1шт.

25

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

3шт.

26

2854593

STUD

1шт.

27

2852486

CABLE CLIP

2шт.
