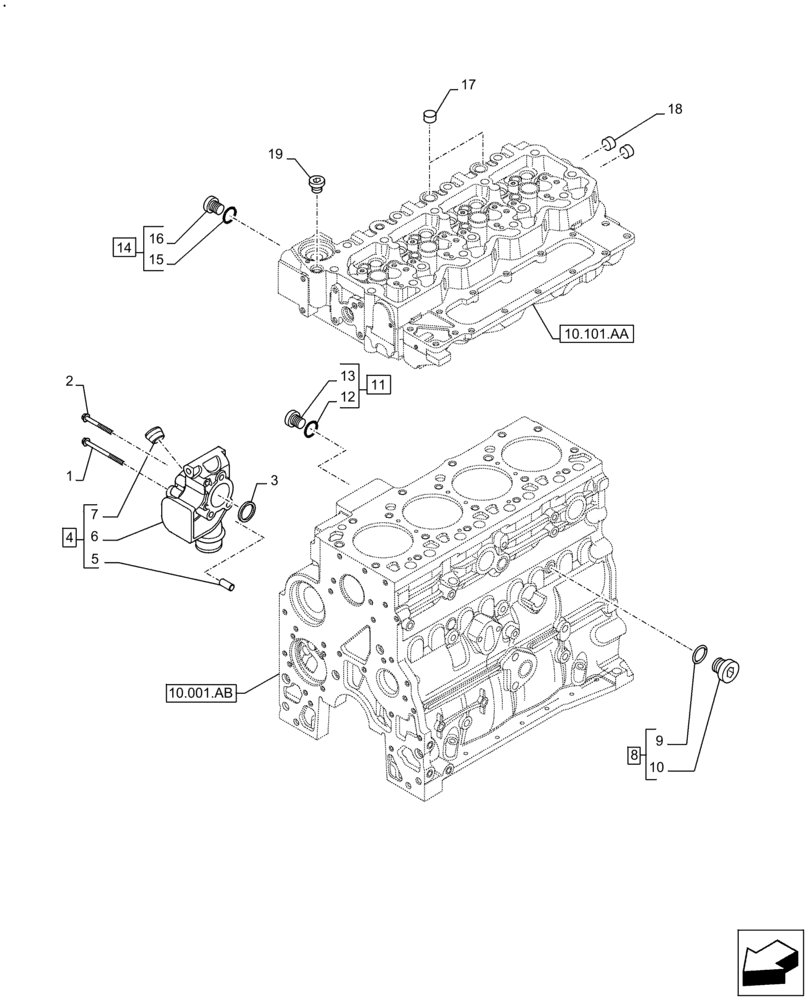

Запчасти Case F4HFE413C A002 (10.400.AE) - ENGINE, COOLING SYSTEM LINE (10) - ENGINE

1

4895538

FLANGE BOLT,Hex, M10 x 1.5 x 120mm

2шт.

2

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

3

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

Assy, Incl 5 - 7

1шт.

4

2853125

HOUSING

1шт.

5

2853128

DOWEL,M6.35 x 19 L

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

7

2853127

PLUG,1/2"-14 NPTF

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

Assy, Incl 9 - 10

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

10

4895624

PLUG,M16 x 1.5 x 18mm L

1шт.

11

4895392

HEX SOCKET PLUG,M18 x 1.5

Assy, Incl 12 - 13

1шт.

12

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

13

4895394

HEX SOCKET PLUG,M18 x 1.5

1шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

Assy, Incl 15 - 16

2шт.

15

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

16

4895081

PLUG,M22 x 1.5 x 16.5mm L

2шт.

17

4895078

PIPE PLUG,1/2"-14

2шт.

18

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

Alternative to 4893036

1шт.

18

4893036

PIPE PLUG,3/4"-14 NPTF

Alternative to 2854866

1шт.

19

2854491

PLUG,Taper Pipe, Hex, 1/4" - 18 x 14.224mm

1шт.
