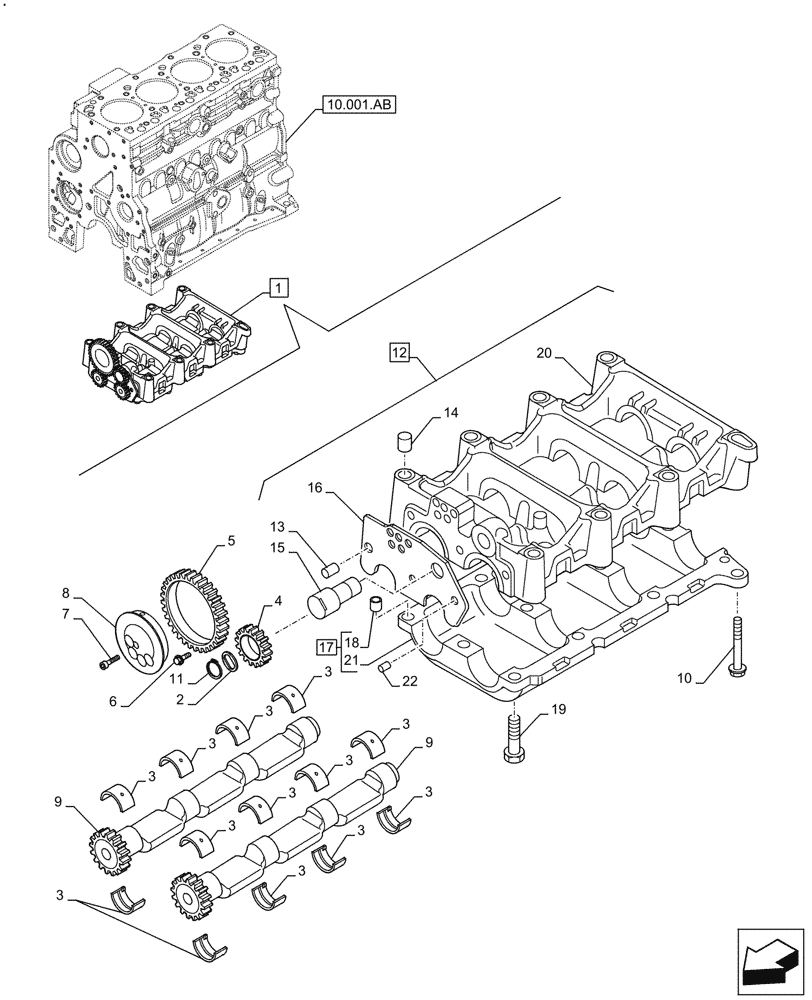

Запчасти Case F4HFE413A E001 (10.110.AC) - BALANCER (10) - ENGINE

1

504121094

ASSY, Incl 10, 12, 19

SUPPORT

1шт.

2

4897123

THRUST BEARING

1шт.

3

8097740

SET OF STD MAIN BRGS

1шт.

4

4897048

IDLER GEAR

1шт.

5

4896947

IDLER GEAR

1шт.

6

4895586

SCREW,Hex, Flg Hd, M8 x 16

3шт.

7

2830433

HEX SOC SCREW

5шт.

8

2831031

IDLE SHAFT

1шт.

9

504088119

SHAFT

2шт.

10

4897934

SCREW,Hex, Flg Hd, M10 x 100

1шт.

11

16866473

SNAP RING

1шт.

12

NSS

NOT SOLD SEPARAT

Balancer, ASSY, Incl 13 - 17, 20, 22, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Dowel, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Dowel, Incl in 12

1шт.

15

NSS

NOT SOLD SEPARAT

Idle shaft, Incl in 12

1шт.

16

NSS

NOT SOLD SEPARAT

Thrust plate, Incl in 12

1шт.

17

NSS

NOT SOLD SEPARAT

Housing, ASSY, Incl 18, 21

1шт.

18

NSS

NOT SOLD SEPARAT

Dowel, Incl in 17

1шт.

19

4899109

SCREW,Hex, M10 x 1.5 x 80

7шт.

20

NSS

NOT SOLD SEPARAT

Upper housing, Incl in 1, 12

1шт.

21

NSS

NOT SOLD SEPARAT

Lower housing, Incl in 17

1шт.

22

NSS

NOT SOLD SEPARAT

Dowel, Incl in 12

1шт.
