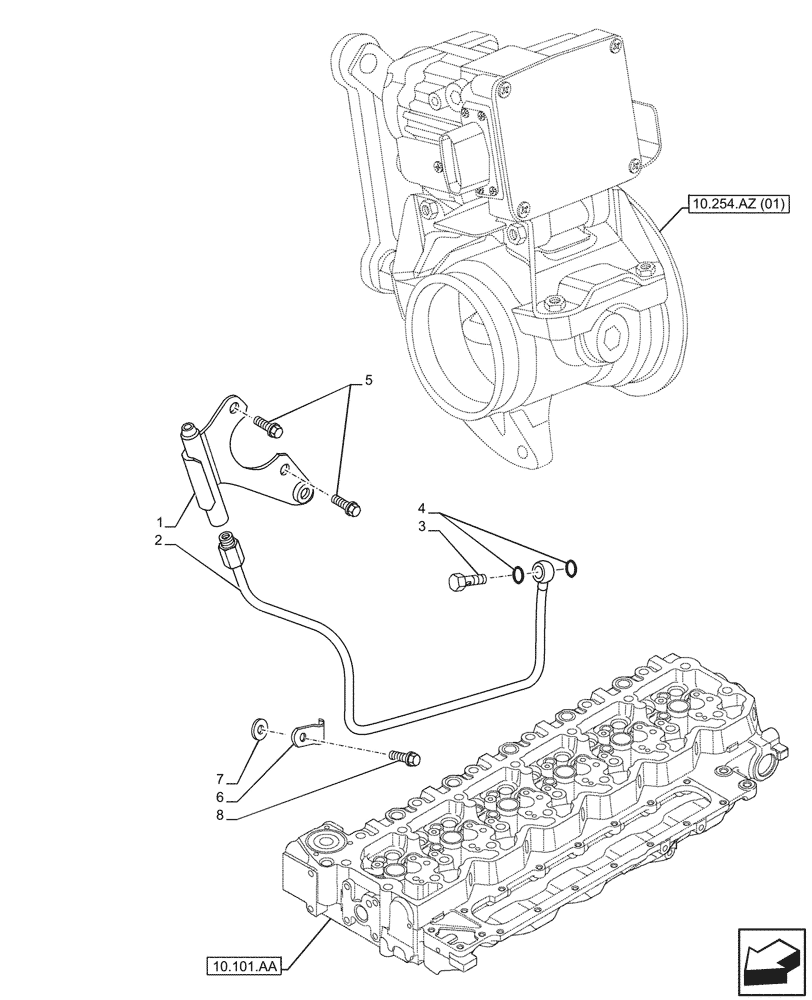

Запчасти Case F4HFE4135 B003 (10.254.AZ[03]) - EXHAUST BRAKE AND CONTROLS (10) - ENGINE

1

47530278

BRACKET

Flanger connection water pipe

1шт.

2

47669689

PIPE

Water Return Tube

1шт.

3

4893096

BANJO BOLT,Hex, M10 x 1 x 19mm

1шт.

4

4899010

SEALING WASHER,10.2mm ID x 13.4mm OD x 1mm Thk

M10 x 13.5 x 1mm

2шт.

5

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

6

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

1шт.

6

47669693

BRACKET

Tube support

1шт.

7

NSS

NOT SOLD SEPARAT

Washer, Incl in 6

1шт.

8

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.
