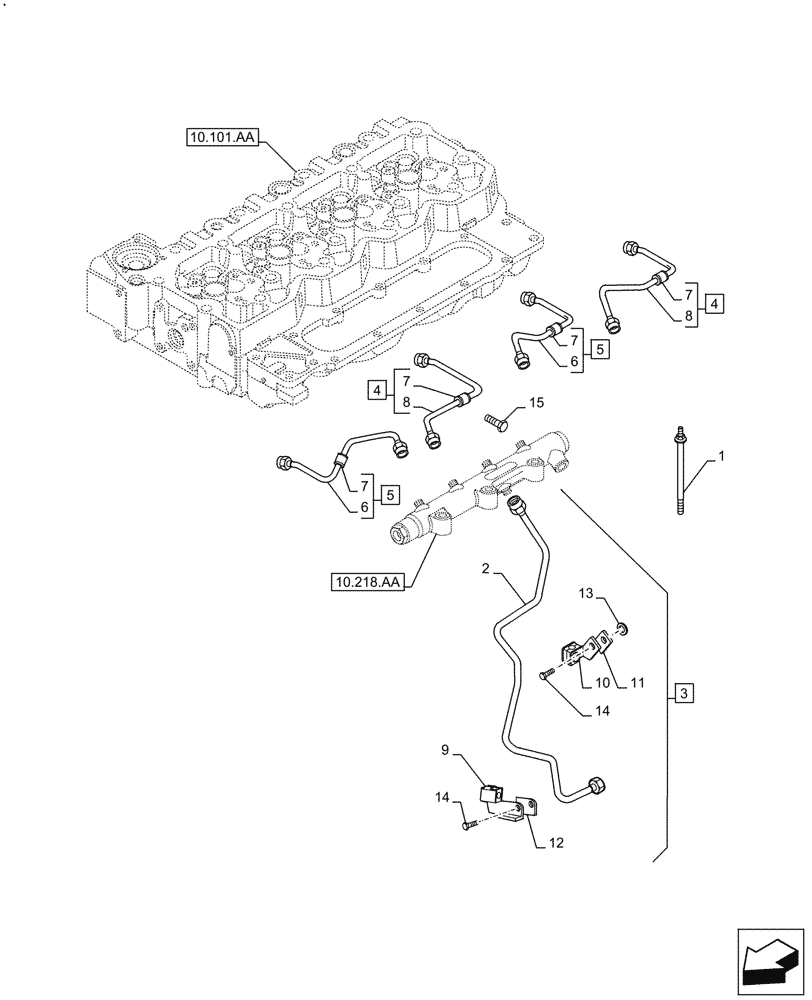

Запчасти Case F4HFE4135 B003 (10.218.AI[02]) - INJECTOR FUEL LINES (10) - ENGINE

1

87681208

BOLT,Hex, M8 X 130, Class 10.9

3шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Fuel supply, Incl in 3

1шт.

3

2857022

PIPE

Assy, Fuel supply, Incl 2, 9 - 14

1шт.

4

2857017

PIPE

Assy, Fuel supply, Incl 7 - 8

2шт.

5

2857020

PIPE

Assy, Fuel supply, Incl 6 - 7

2шт.

6

2857021

PIPE

Fuel supply

2шт.

7

2854548

SILENTBLOC

Isolator vibration

2шт.

8

NSS

NOT SOLD SEPARAT

Pipe, Fuel supply, Incl in 4

2шт.

9

2854557

CLAMP BRACKET

Pipe anchoring

2шт.

10

2854556

CLAMP BRACKET

Pipe anchoring

2шт.

10

2854558

RUBBER SEAL

Pipe anchoring

2шт.

11

2854554

BRACKET

Pipe anchoring

1шт.

12

2854555

CLAMP BRACKET

Pipe anchoring

1шт.

13

2852434

SPACER

8.5mm ID x 18mm OD x 5mm L

1шт.

14

2854559

SCREW

2шт.

15

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

1шт.

9

17059987

Cable tie

CABLE TIE

3шт.

12

5801730517

BRACKET

Pipe anchoring

1шт.

14

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.
