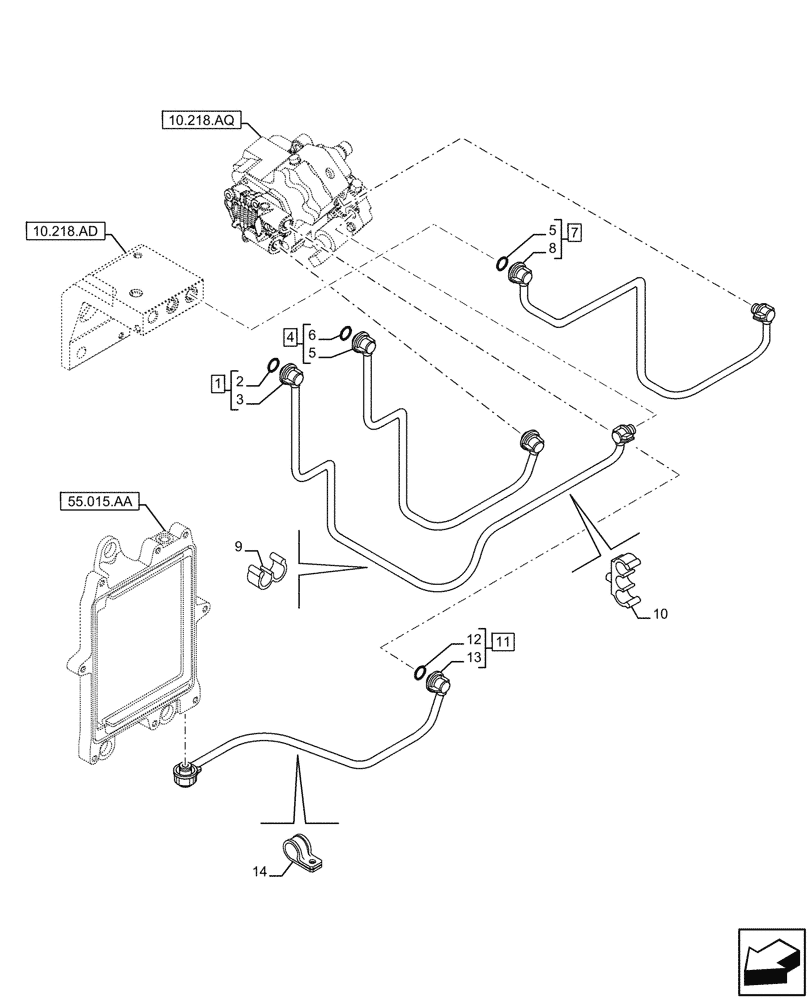

Запчасти Case F4HFE4135 B003 (10.210.AF) - FUEL SUPPLY LINE (10) - ENGINE

1

47529779

PIPE

ASSY, Inlet to injection pump, Incl 2, 3

1шт.

2

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

ELEC CONNECTOR PIPE, Incl in 1

1шт.

4

47530099

PIPE

ASSY, Injection pump to filter, Incl 5, 6

1шт.

5

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

6шт.

6

2854572

90 ELBOW

Quick disconnect connector, Incl in 4

1шт.

7

47530101

PIPE

ASSY, Return to tank, Incl 5, 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEC CONNECTOR PIPE, Incl in 7

1шт.

9

47528951

BRACKET

Fuel pipe

2шт.

10

47529785

CLIP

Fuel pipe

1шт.

11

47668578

TUBE

ASSY, ECU to pump, Incl 14, 15

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING, Incl in 13

2шт.

13

NSS

NOT SOLD SEPARAT

Pipe, Incl in 13

1шт.

14

47668598

CLIP

Fuel tube support

1шт.
