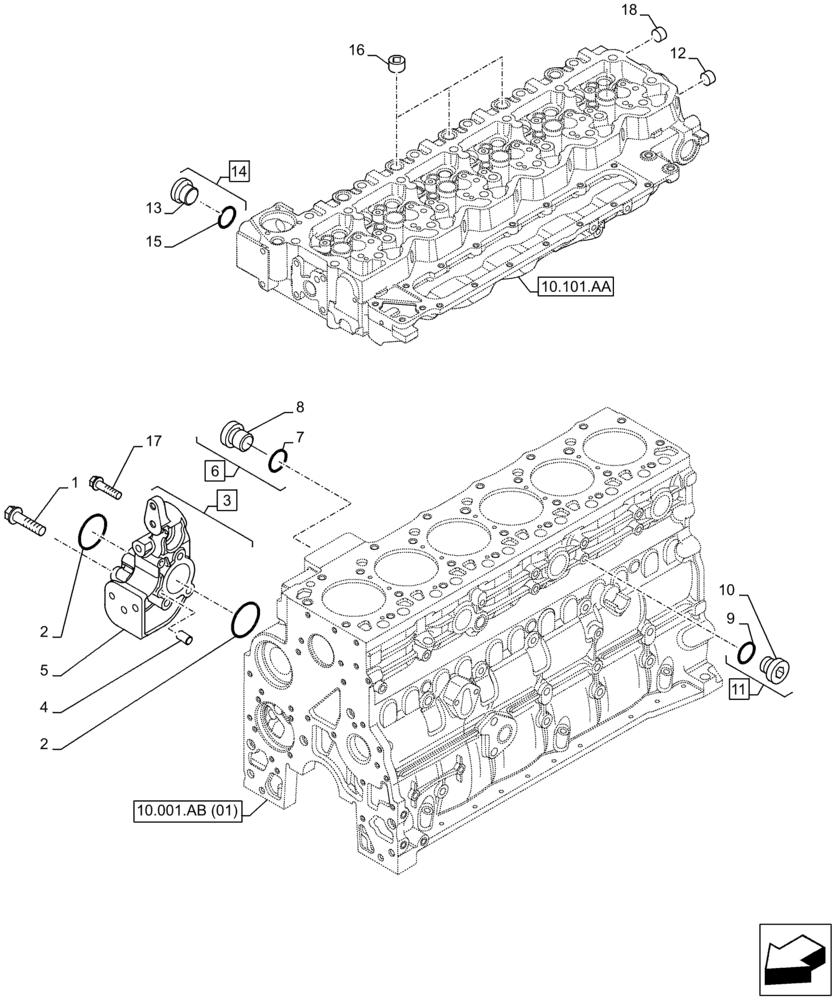

Запчасти Case F4HFA613N E001 (10.400.AE) - ENGINE, COOLING SYSTEM LINE (10) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

2шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2854938

FITTING

ASSY, Incl 2, 4, 5, Alternative

1шт.

3

4892347

SUPPORT

ASSY, Incl 2, 4, 5, Alternative

1шт.

4

4895576

DOWEL

2шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 7, 8

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

2шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

11

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 9, 10

1шт.

12

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 13, 15

1шт.

15

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

16

4895078

PIPE PLUG,1/2"-14

3шт.

17

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

18

2854491

PLUG,Taper Pipe, Hex, 1/4" - 18 x 14.224mm

1шт.
