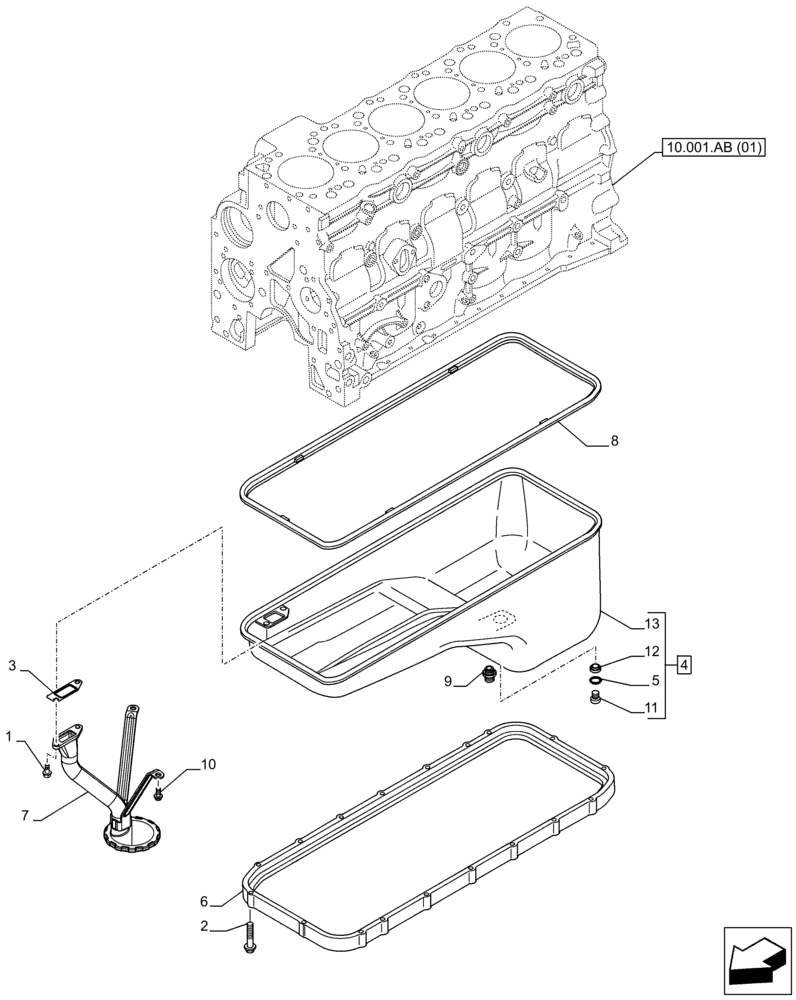

Запчасти Case F4HFA613N E001 (10.102.AP) - ENGINE OIL PAN (10) - ENGINE

1

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852308

ENGINE OIL PAN

ASSY, Incl 5, 11 - 13

1шт.

5

4895584

O-RING,0.924mm ID x 0.103mm Width

1шт.

5

2853728

O-RING,M23.47 ID x 2.62 Thk

1шт.

6

4897858

SPACER

1шт.

7

84343612

FILTER STRAINER

1шт.

8

4897861

OIL PAN GASKET SET,17.3mm Thk

1шт.

9

2853894

DRAIN PLUG

1шт.

10

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

3шт.

11

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

12

4890331

BUSHING

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.
