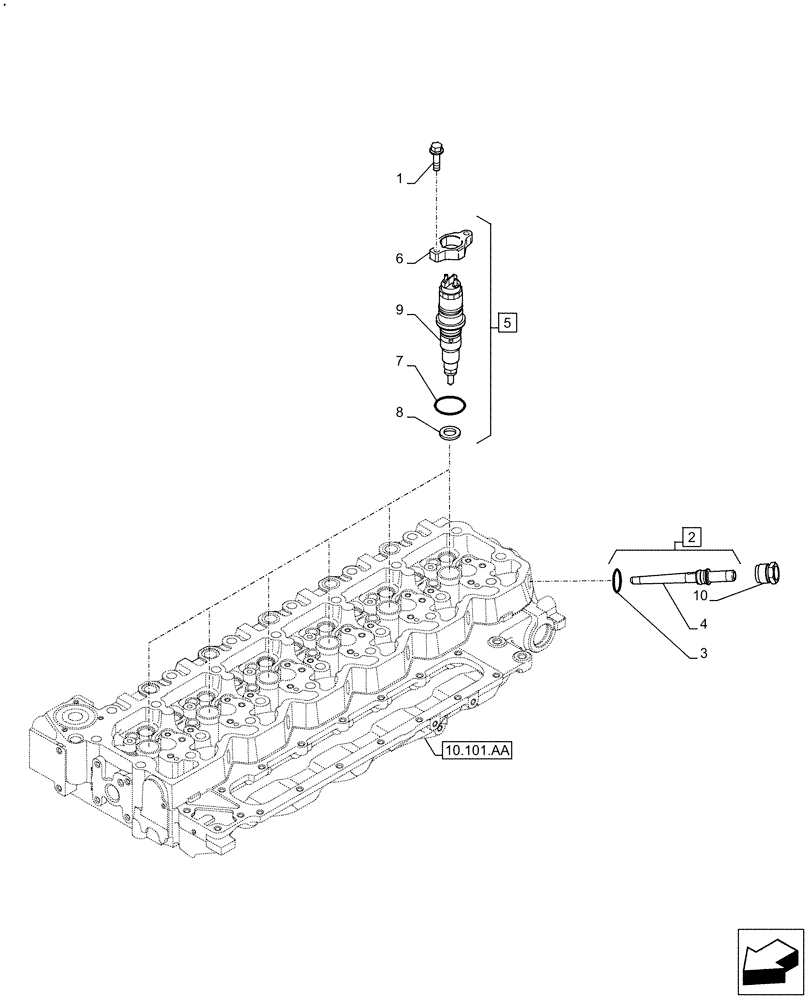

Запчасти Case F4HFA613K E003 (10.218.AF) - FUEL INJECTOR (10) - ENGINE

1

4895483

BOLT,Flng, M6 x 1 x 35mm

M6 x 1 x 35

12шт.

2

2854606

FUEL TUBE,Connector Assembly

ASSY, Incl 3, 4

6шт.

3

4890929

O-RING,3mm Thk x 11mm ID

ID = 11.0 x 3.0

1шт.

4

2854607

HYD CONNECTOR

Fitting, Incl in 2

1шт.

5

2855135

FUEL SYSTEM INJECTOR

ASSY, Incl 6 - 9

6шт.

6

2854609

BRACKET

1шт.

7

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

ID = 20.9 x 3.0

1шт.

8

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

1шт.

9

NSS

NOT SOLD SEPARAT

Injector, Incl in 5

1шт.

10

4893739

TUBE NUT,Hex, M22 x 1.5

6шт.
