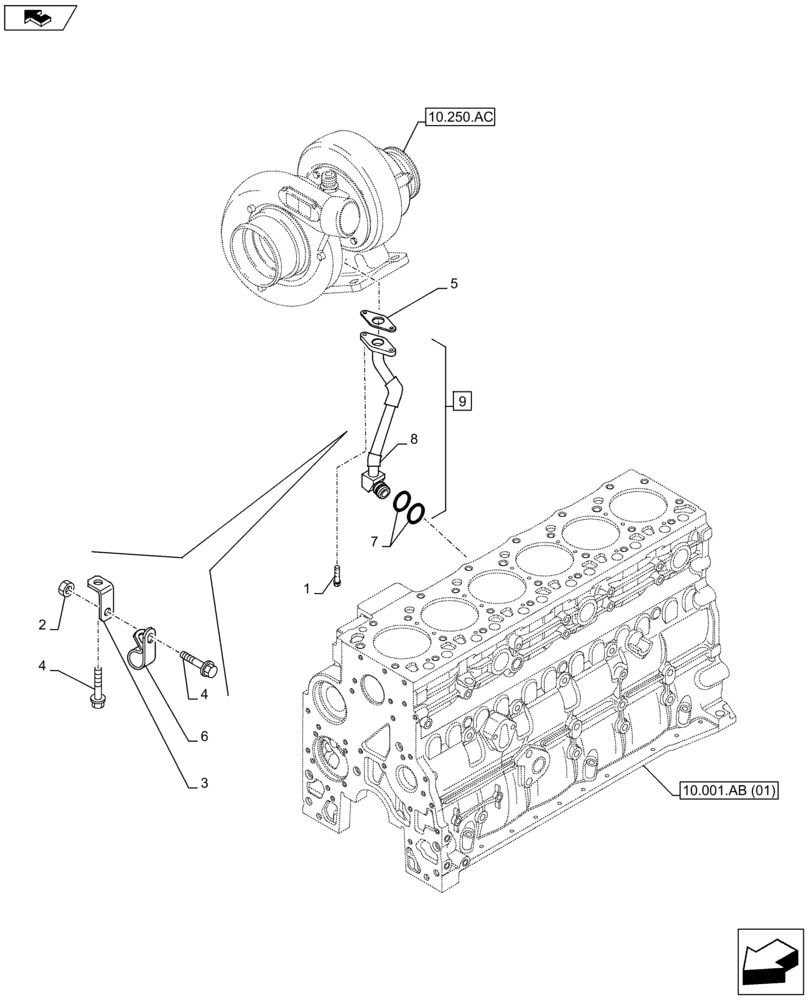

Запчасти Case F4HFA613G E001 (10.250.AE) - TURBOCHARGER, RETURN, LINE (10) - ENGINE

1

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

M8 x 1.25 x 25

2шт.

2

2852389

FLANGE NUT

M8 x 1.25

1шт.

3

2852390

BRACKET

1шт.

4

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

M8 x 1.25 x 16

2шт.

5

4891288

GASKET,0.8mm Thk

1шт.

6

4896893

CLAMP,20mm W

1шт.

7

2852801

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

Pipe, Incl in 9

1шт.

9

47547979

PIPE

ASSY, Incl 7, 8

1шт.
