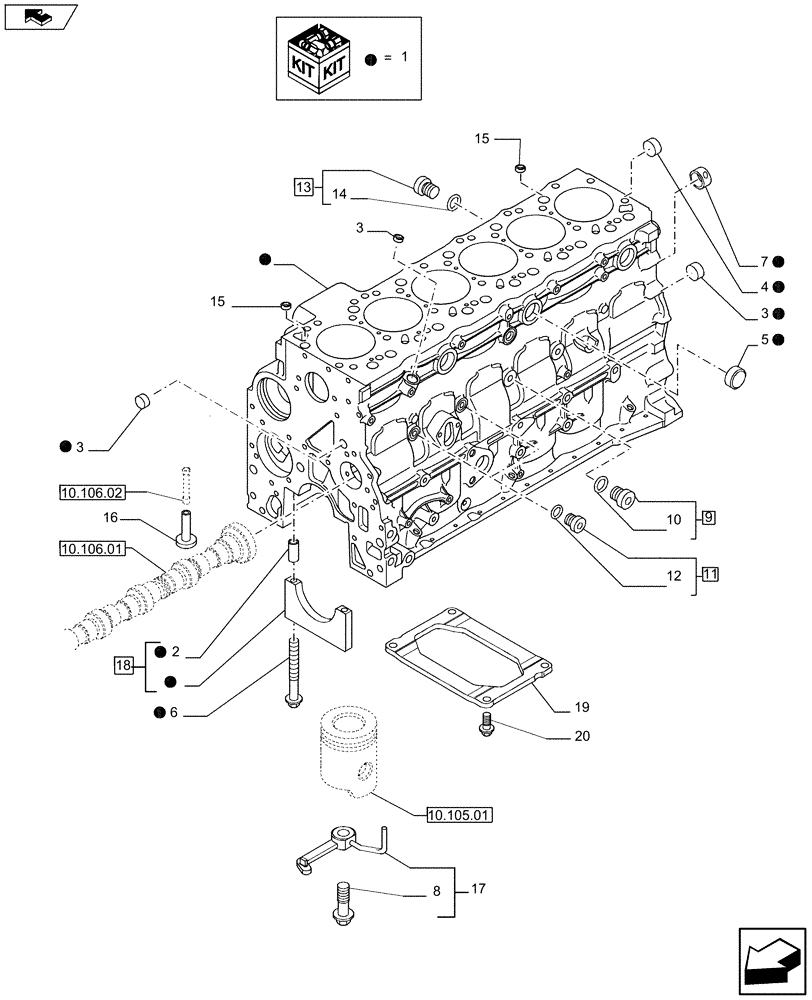

Запчасти Case F4HFA613A E002 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (5801371818 - 2852417 - 2852728) (10) - ENGINE

1

2830076

CYLINDER BLOCK,6 Cylinders

ASSY

1шт.

2

4899026

DOWEL,M18 x 10

14шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

6шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

14шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

8

4894218

SCREW,Special, M8 x 20

6шт.

9

4895605

HEX SOCKET PLUG,M14 x 1.5

ASSY

2шт.

10

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

11

4899009

PLUG,M10 x1

ASSY

2шт.

12

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

13

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY

2шт.

14

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

15

4895049

DOWEL,M16.05 x 10

2шт.

16

4891226

TAPPET

12шт.

17

2852202

NOZZLE, PISTON COOLI

6шт.

18

4895919

BEARING ASSY,86.1mm D

ASSY

6шт.

18

4895921

BEARING ASSY,86.1mm D

1шт.

19

2852729

STIFFENER

1шт.

20

4899032

SCREW,Hex Flg, M10 x 1.5 x 25

4шт.
