Запчасти Case F4HFE613Z A005 (10.105.02) - CONNECTING ROD (504336352) (10) - ENGINE

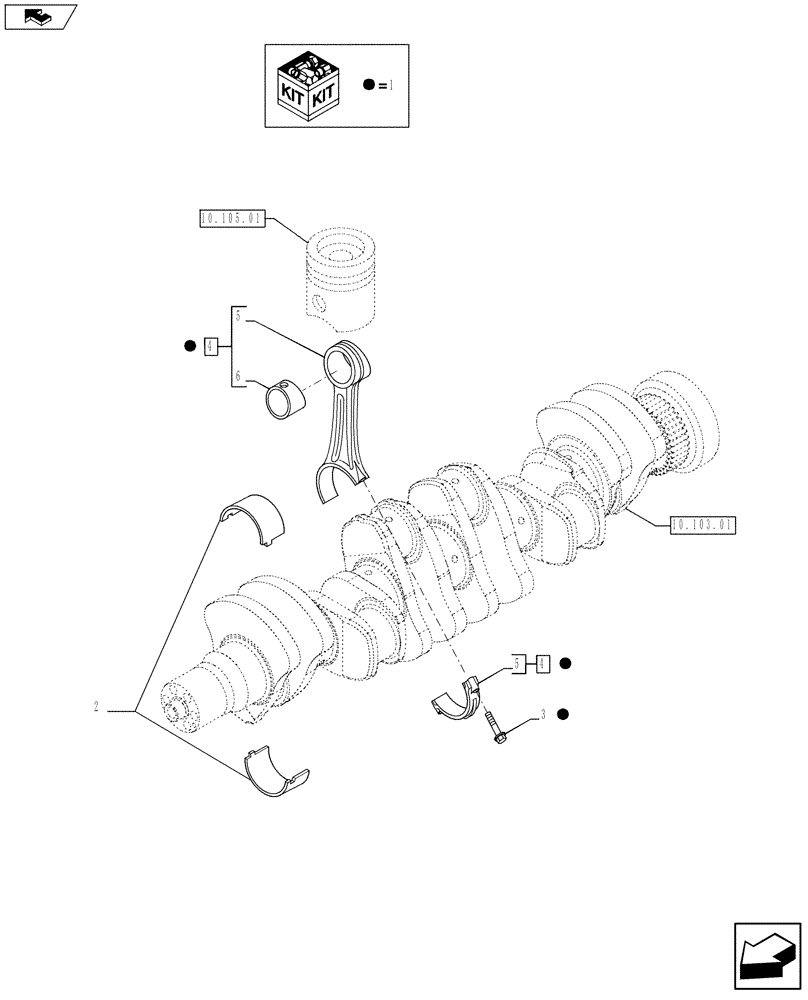

Схема запчастей Case F4HFE613Z A005 - (10.105.02) - CONNECTING ROD (504336352) (10) - ENGINE
2
4
6
1
1
home
1
5
1
10.103.01
4
5
1
10.105.01
3

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

ASSY

6шт.

2831298R

REMAN-CONNECTING ROD

F4HFE613Z*A005 ENGINE 5801366340 - 84285367

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

2856309

CRANKSHAFT BEARING

6шт.

2

4892715

BEARING LINER

BEARING, CON. ROD

6шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

4895747

CONNECTING ROD

ASSY

1шт.

2831298R

REMAN-CONNECTING ROD

F4HFE613Z*A005 ENGINE 5801366340 - 84285367 Reman For New P/N 4895747

1шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

5

4895746

1шт.

6

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

Выбрано товаров: 11
