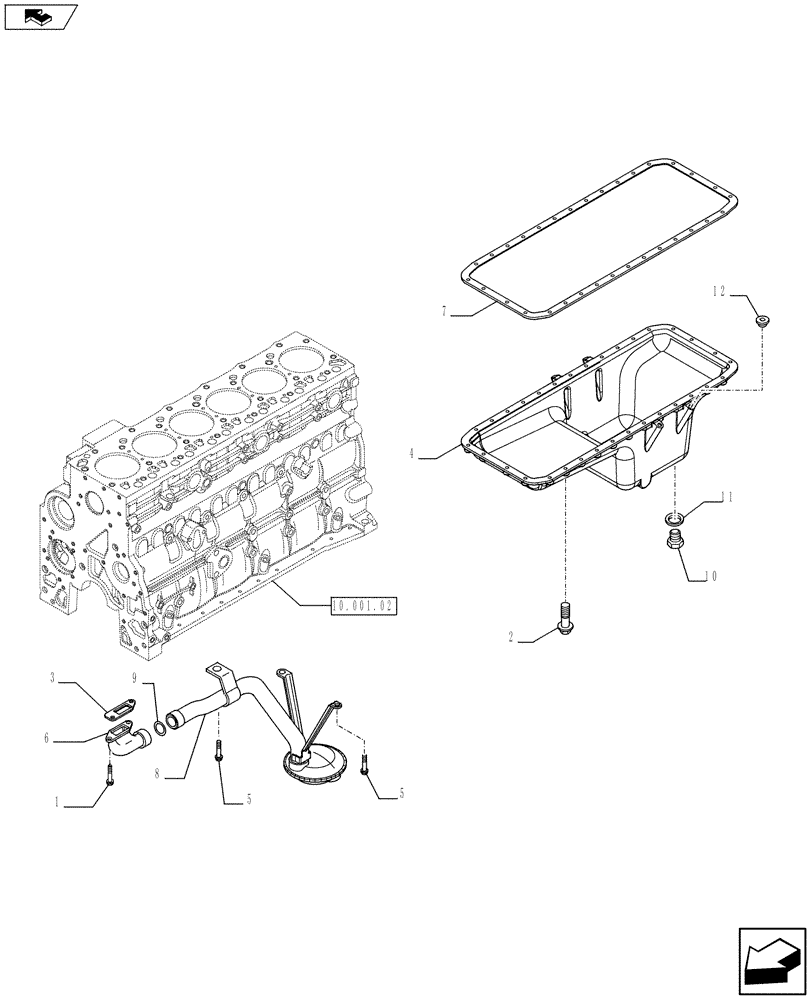

Запчасти Case F4HFE613Z A005 (10.102.01) - OIL SUMP & RELATED PARTS (504084707) (10) - ENGINE

1

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

2

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

32шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852419

ENGINE OIL PAN

1шт.

5

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

3шт.

6

2852238

ELBOW

1шт.

7

2852420

OIL PAN GASKET SET

1шт.

8

2852770

STRAINER ELEMENT

1шт.

9

2852237

SEALING RING

1шт.

10

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

11

2853728

O-RING,M23.47 ID x 2.62 Thk

1шт.

12

4897330

HEX SOCKET PLUG,M12 x 1.5

1шт.
