(10.101.01) - CYLINDER HEAD (504115961)

Запчасти Case F4HFE613V A003 (10.101.01) - CYLINDER HEAD (504115961) (10) - ENGINE

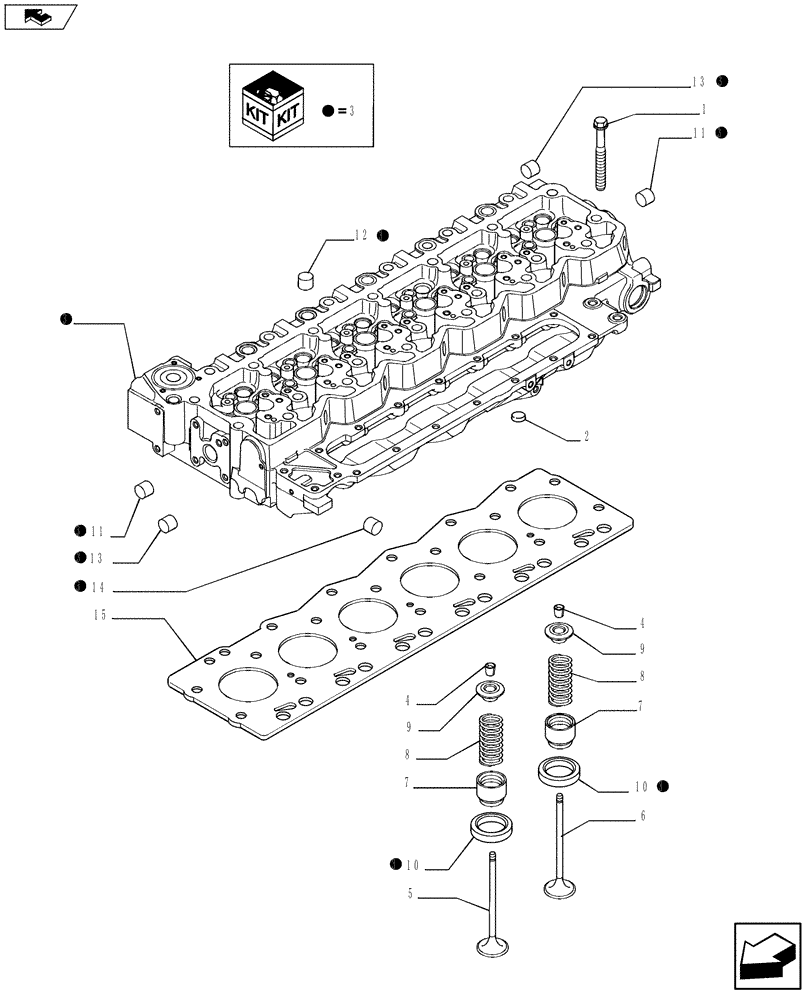

Схема запчастей Case F4HFE613V A003 - (10.101.01) - CYLINDER HEAD (504115961) (10) - ENGINE
3
8
3
3
4
7
3
9
10
2
13
3
3
4
8
11
5
14
12
15
13
3
3
6
1
3
9
11
3
7
3
home
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

M12 x 130

12шт.

1

4891025

SCREW,Flng, M12 x 1.75 x 150mm

M12 x 150

14шт.

2

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

3

2831274

CYLINDER HEAD,6 Cylinders

ASSY

1шт.

3

2831274R

REMAN-CYLINDER HEAD

1шт.

3

2831274C

CORE-CYLINDER HEAD

Return Number

1шт.

4

4899081

ROCKER ARM COTTER

48шт.

5

4895051

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

6

4895052

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

7

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

24шт.

8

4895073

VALVE SPRING

24шт.

9

4895074

CUP,18mm ID

24шт.

10

4897578

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

10

4897106

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

11

4895085

EXPANSION PLUG,25.74mm

OD

13шт.

12

4895089

PLUG,0.886" L

.886" OD

11шт.

13

4895406

EXPANSION PLUG,9.8mm OD

Intake

7шт.

14

4895407

EXPANSION PLUG,38.28mm OD

Exhaust, 38.28mm OD

2шт.

15

2830705

CYLINDER HEAD GASKET,1.15mm Thk

SP=1.25

1шт.

15

2830704

CYLINDER HEAD GASKET,1.25mm Thk

SP=1.15

1шт.

Выбрано товаров: 20
