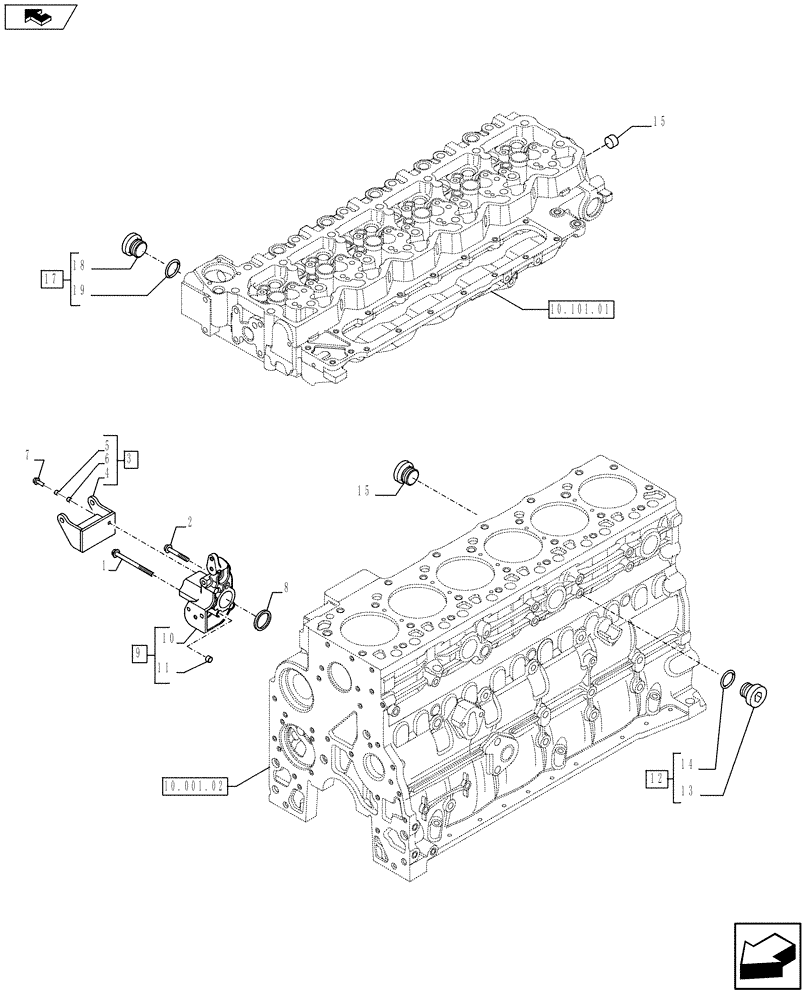

Запчасти Case F4HFE613U A006 (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (504259533-504199747-504212393) (10) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

2шт.

2

2854424

SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm

1шт.

3

2855462

BRACKET

ASSY

1шт.

4

2855463

1шт.

5

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.

6

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

1шт.

7

2852295

SCREW,Hex, M8 x 1.25 x 40mm

3шт.

8

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

9

2855443

FITTING

ASSY

1шт.

10

2855444

HYD CONNECTOR

1шт.

11

98405182

DOWEL

2шт.

12

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

13

4895624

PLUG,M16 x 1.5 x 18mm L

1шт.

14

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

15

4895392

HEX SOCKET PLUG,M18 x 1.5

1шт.

16

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

17

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY

1шт.

18

4895081

PLUG,M22 x 1.5 x 16.5mm L

1шт.

19

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
