(10.250.AD) - TURBOCHARGER, 1.5M DUAL CAM WIDE PICKUP, SUPPLY, CONNECTING

Запчасти Case F4HFE613T B006 (10.250.AD) - TURBOCHARGER, 1.5M DUAL CAM WIDE PICKUP, SUPPLY, CONNECTING (10) - ENGINE

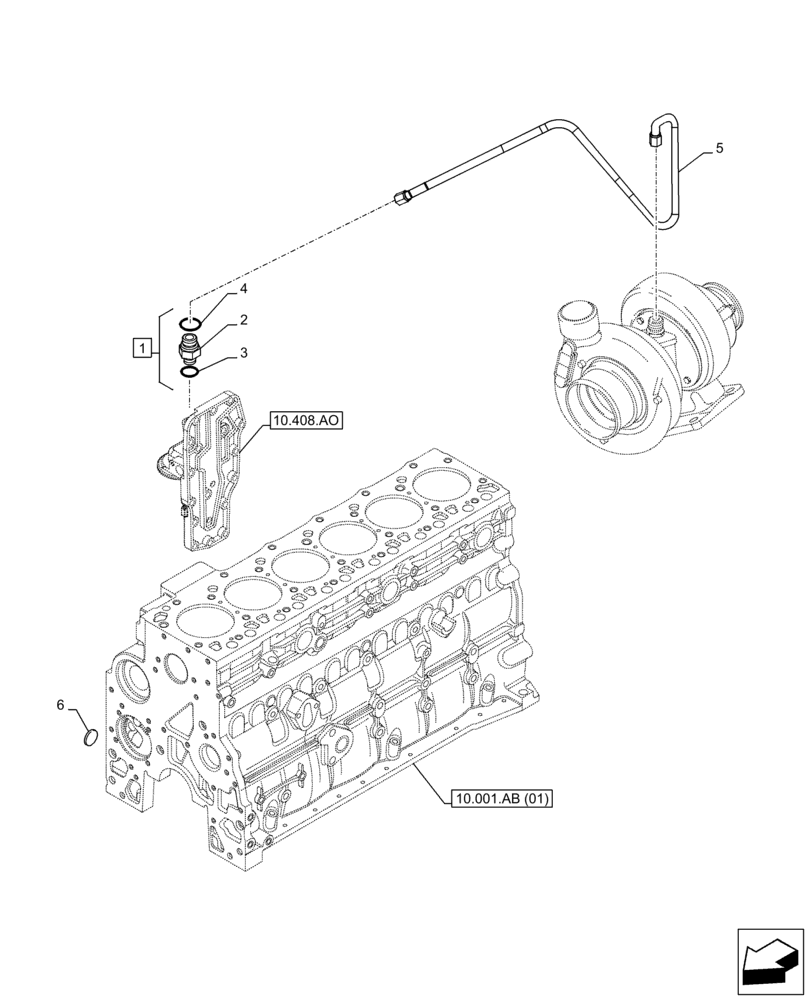

Схема запчастей Case F4HFE613T B006 - (10.250.AD) - TURBOCHARGER, 1.5M DUAL CAM WIDE PICKUP, SUPPLY, CONNECTING (10) - ENGINE
1
10.408.ao
3
5
10.001.ab (01)
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

ASSY, Incl 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

Union, Incl in 1

1шт.

3

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

47629530

HOSE

1шт.

6

4895089

PLUG,0.886" L

1шт.

Выбрано товаров: 6
