Запчасти Case F4HFE613T B002 (55.013.AD) - ENGINE OIL, PRESSURE SENSOR (55) - ELECTRICAL SYSTEMS

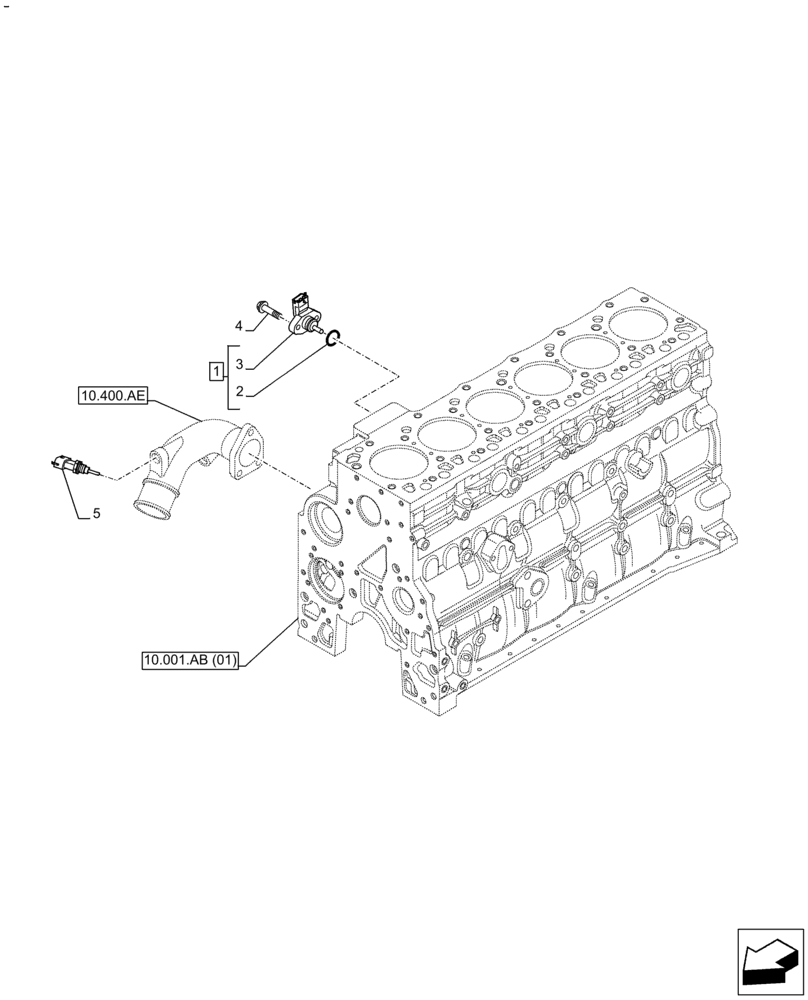

Схема запчастей Case F4HFE613T B002 - (55.013.AD) - ENGINE OIL, PRESSURE SENSOR (55) - ELECTRICAL SYSTEMS
10.400.ae
4
1
3
5
2
10.001.ab (01)

Артикул

Название

Примечание

Количество

1

2859674

SENSOR,Oil Pressure

Oil pressure and temperature, ASSY, Incl 2, 3

1шт.

2

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

3

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.

4

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

5

82017881

SENSOR

Pressure and temperature

2шт.

Выбрано товаров: 5
