/ / / / / / / / (10.101.02[01]) - HEAD COVER, UP TO SERIAL NUMBER 1462087
Запчасти Case F4HFE613T A004 (10.101.02[01]) - HEAD COVER, UP TO SERIAL NUMBER 1462087 (10) - ENGINE

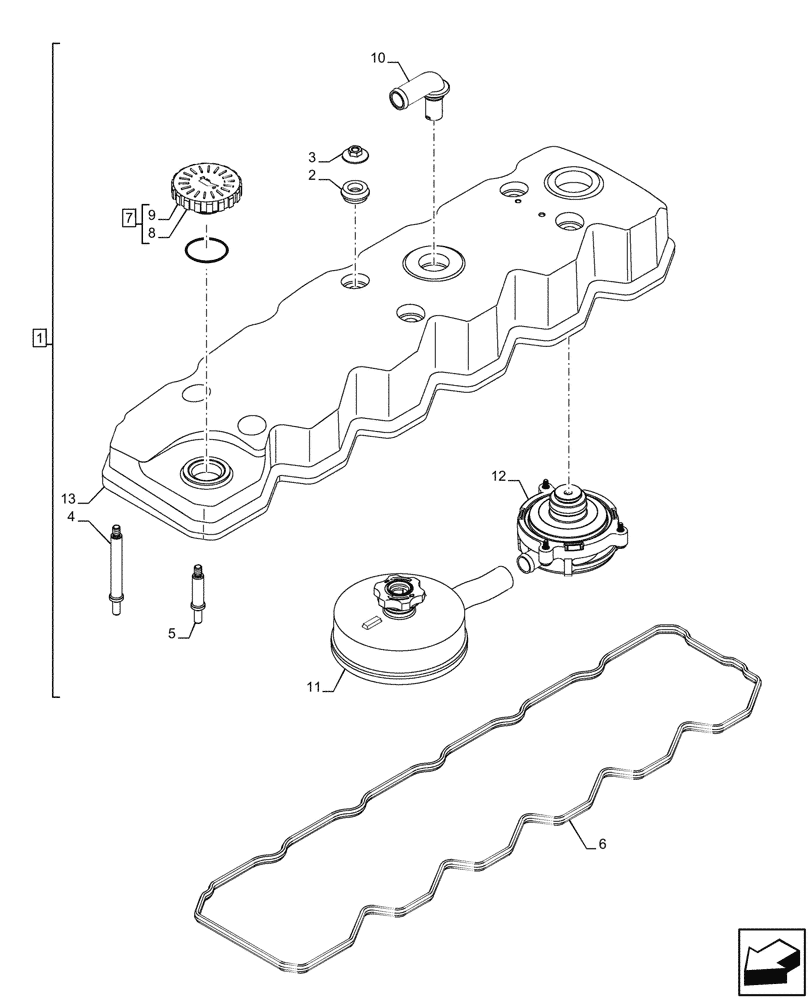

![Схема запчастей Case F4HFE613T A004 - (10.101.02[01]) - HEAD COVER, UP TO SERIAL NUMBER 1462087 (10) - ENGINE](https://partsell.ru/storage/images/casece/185701.png)
2
5
9
12
7
4
11
10
3
6
13
8
1
1
504118461
ASSY, Incl 10 - 13
1шт.
2
504070041
GASKET
6шт.
3
504075125
FLANGE NUT
6шт.
4
504088235
SCREW
4шт.
5
504129243
SCREW
2шт.
6
504070038
GASKET
1шт.
7
504262827
CAP
ASSY, Incl 8, 9
1шт.
8
98412146
GASKET
1шт.
9
NSS
NOT SOLD SEPARAT
Plug, Incl in 1
1шт.
10
504153152
TUBE
1шт.
11
504153151
ELEMENT
1шт.
12
504371134
VALVE
1шт.
13
NSS
NOT SOLD SEPARAT
Head cover, Incl in 1
1шт.
