(10.105.02) - SHORT BLOCK - CONNECTING ROD (5801371818 - 84364070)

Запчасти Case F4HFE613T A004 (10.105.02) - SHORT BLOCK - CONNECTING ROD (5801371818 - 84364070) (10) - ENGINE

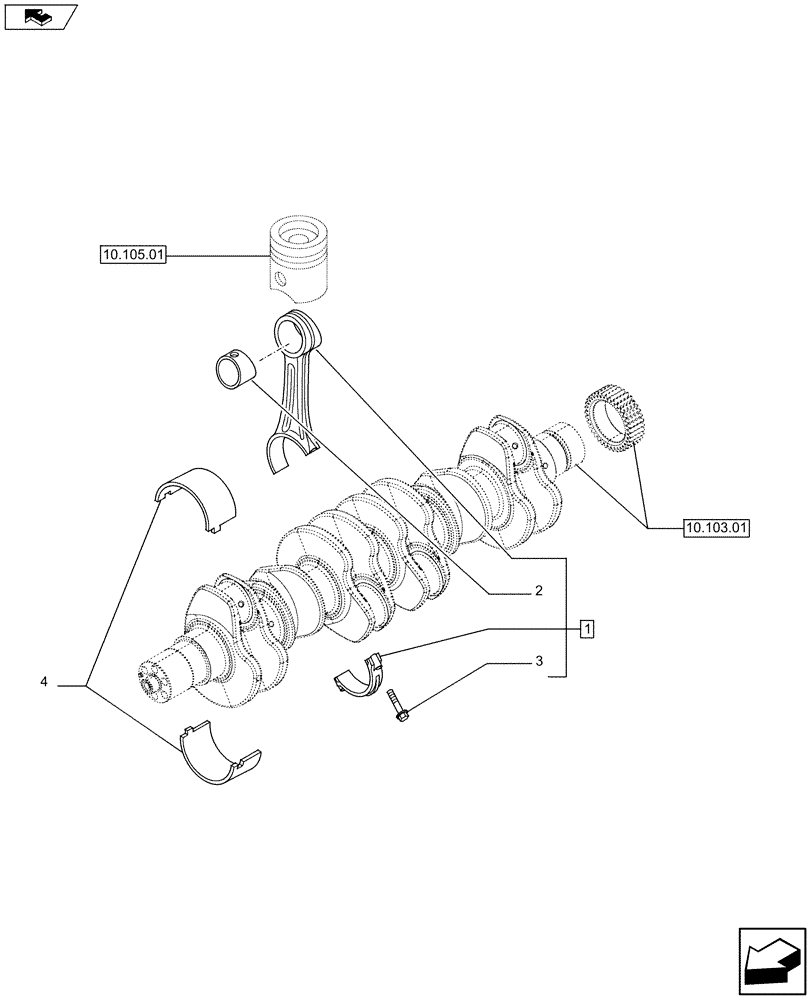

Схема запчастей Case F4HFE613T A004 - (10.105.02) - SHORT BLOCK - CONNECTING ROD (5801371818 - 84364070) (10) - ENGINE
2
home
10.103.01
3
1
10.105.01
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

ASSY

6шт.

1

2831298R

REMAN-CONNECTING ROD

6шт.

1

2831298C

CORE-ROD CONNECTING

Return Number

6шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8094961

BEARING SET,(-0.500)

6шт.

4

8094960

BEARING SET,(-0.250)

6шт.

4

8093882

BEARING SET

6шт.

Выбрано товаров: 8
