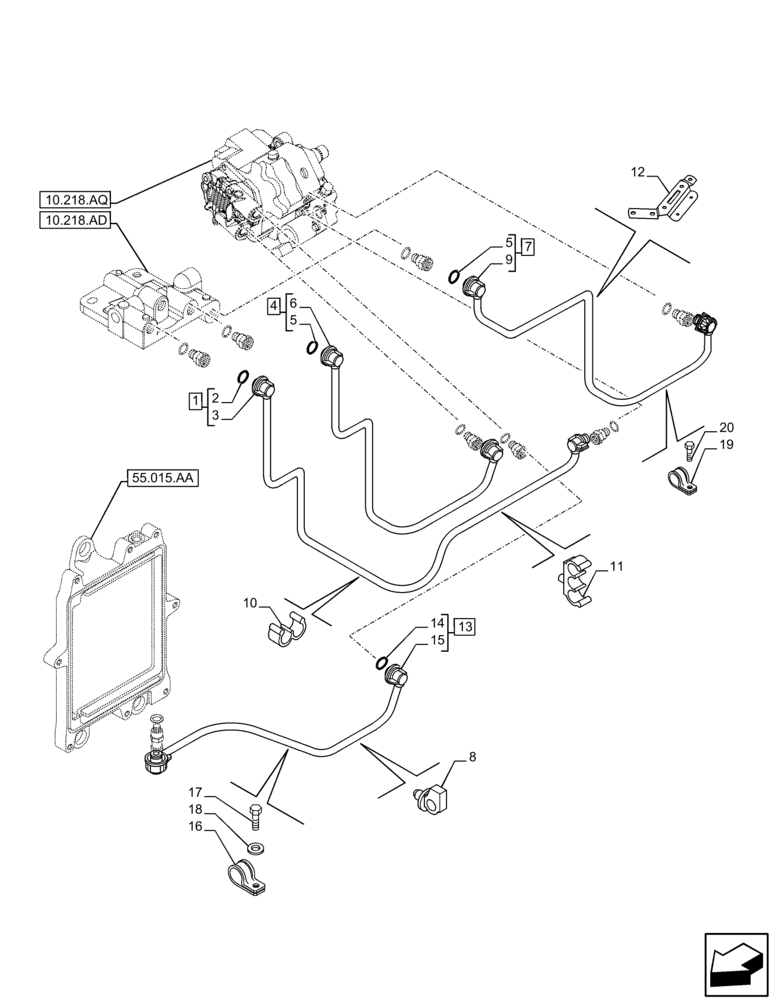

Запчасти Case F4HFE613S B004 (10.210.AF) - FUEL LINE (10) - ENGINE

1

47528926

PIPE

ASSY, Incl 2, 3

1шт.

2

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

3

2854572

90 ELBOW

Pipe, Incl in 1

1шт.

4

47528927

PIPE

ASSY, Incl 5, 6

1шт.

5

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

4шт.

6

2854572

90 ELBOW

Pipe, Incl in 4

1шт.

7

47528929

PIPE

ASSY, Incl 5, 9

1шт.

8

4897277

SCREW

2шт.

9

2854572

90 ELBOW

Pipe, Incl in 7

1шт.

10

47528951

BRACKET

2шт.

11

47528950

BRACKET

3шт.

12

47528949

BRACKET

1шт.

13

47700378

PIPE

ASSY, ECM to Pump Tube, Incl 14, 15

1шт.

14

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

1шт.

14

4890929

O-RING,3mm Thk x 11mm ID

2шт.

15

NSS

NOT SOLD SEPARAT

Pipe, Incl in 13

1шт.

16

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

18

2856006

SPACER

1шт.

19

10441390

COLLAR,12mm, Coat, 7mm Bolt Hole, P Type

1шт.

20

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.
