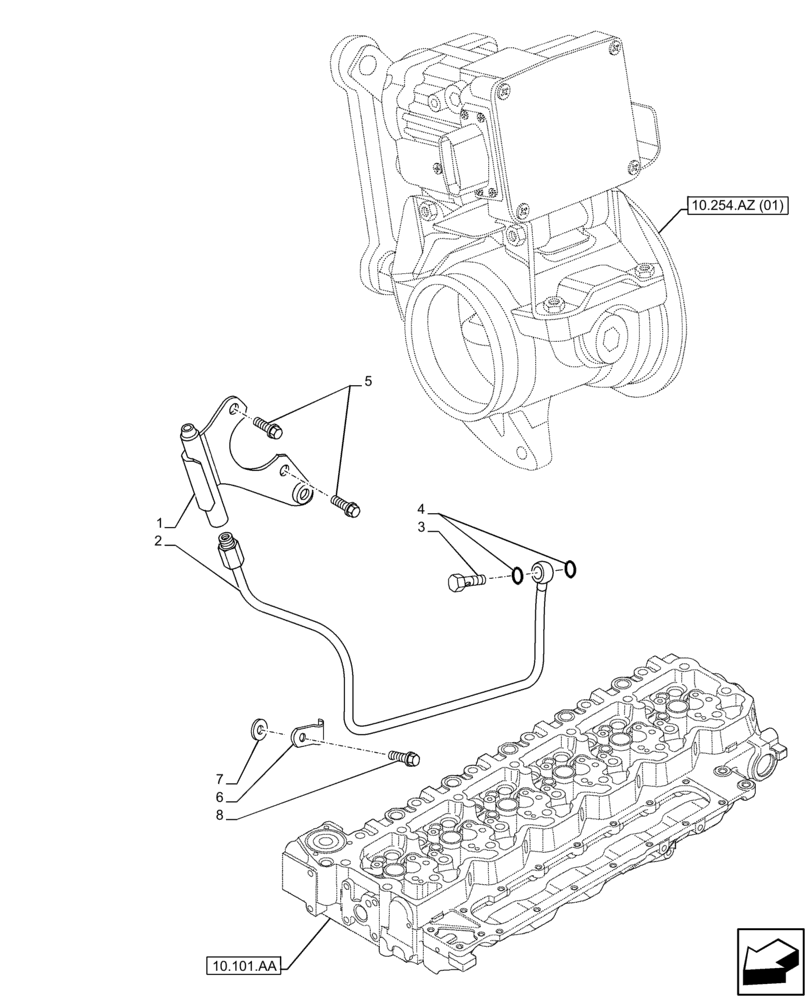

Запчасти Case F4HFE613S B004 (10.254.AZ[03]) - ENGINE EXHAUST BRAKE, PIPE, WATER SUPPLY (10) - ENGINE

1

47530278

BRACKET

1шт.

2

47556562

PIPE

Water Return Tube

1шт.

3

4893096

BANJO BOLT,Hex, M10 x 1 x 19mm

1шт.

4

4899010

SEALING WASHER,10.2mm ID x 13.4mm OD x 1mm Thk

2шт.

5

2852247

BOLT,Hex, M8 x 1.25 x 30mm

2шт.

6

10418501

BRACKET,10mm, Coat, 7mm Bolt Hole, P Type

2шт.

6

2852819

CLAMP

ASSY, Incl 7

1шт.

7

13605715

SPACER,9mm ID x 18mm OD x 5mm L

1шт.

7

2852389

FLANGE NUT

2шт.

8

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.
