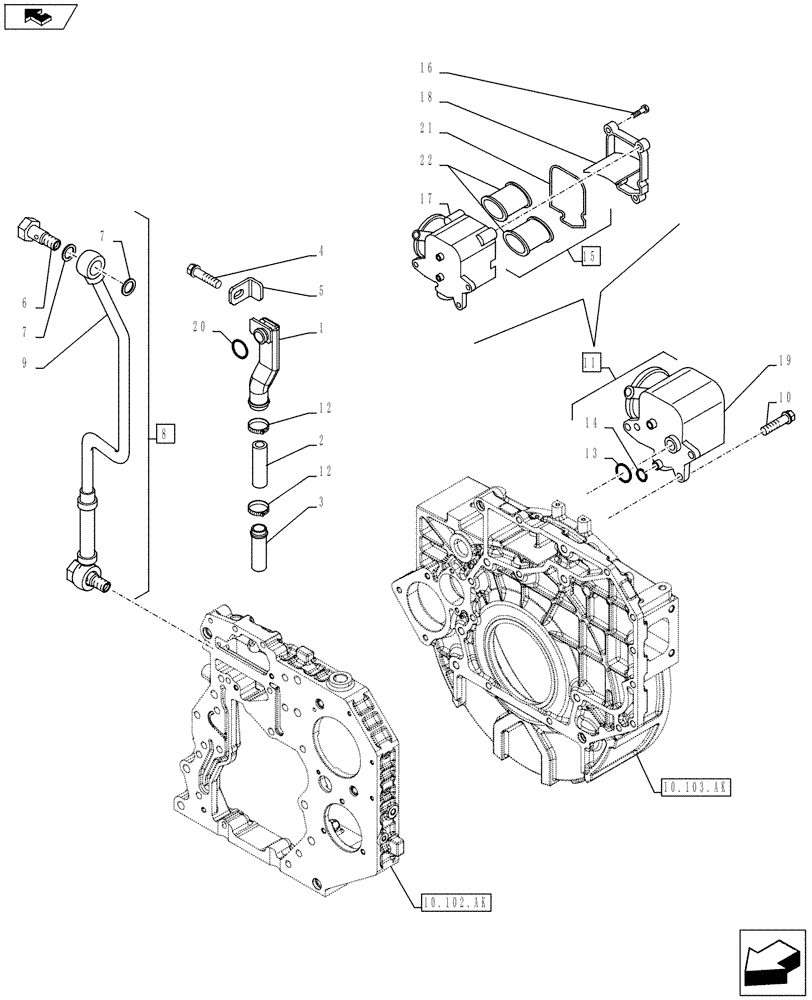

Запчасти Case F4HFE613S B004 (10.304.AP) - ENGINE, BREATHER (10) - ENGINE

1

4897534

TUBE

1шт.

2

4897546

RUBBER SLEEVE

1шт.

2

2854521

HOSE

1шт.

3

4897547

TUBE

1шт.

4

4897537

SCREW

M6 x 1 x 10

1шт.

5

4897536

BRACKET

1шт.

6

2852772

BANJO BOLT

M12 x 1.5

2шт.

7

NSS

NOT SOLD SEPARAT

ID = 11.8

4шт.

8

4899219

TUBE

ASSY, Incl 6, 7, 9

1шт.

9

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.

10

4899092

SCREW,Hex Flg, M6 x 1 x 25

M6 x 1.0 x 25

3шт.

11

4892871

BREATHER

ASSY, Incl 15 - 18

1шт.

12

4893234

HOSE CLAMP

2шт.

12

2831016

HOSE CLAMP

from 25.2 mm to 29 mm

2шт.

13

4898372

O-RING,13.11mm ID x 2.62mm Width

ID = 13.11 x 2.62

1шт.

14

2830304

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

ASSY, Incl 21, 22

1шт.

16

NSS

NOT SOLD SEPARAT

6шт.

17

2830307

BREATHER

1шт.

18

2830302

COVER

1шт.

19

NSS

NOT SOLD SEPARAT

Breather, Incl in 4

1шт.

20

4898439

O-RING,20.29mm ID x 2.62mm Width

ID = 29 x 2.62

1шт.

21

NSS

NOT SOLD SEPARAT

Gasket, Incl in 4

1шт.

22

NSS

NOT SOLD SEPARAT

Filter, Incl in 4

1шт.
