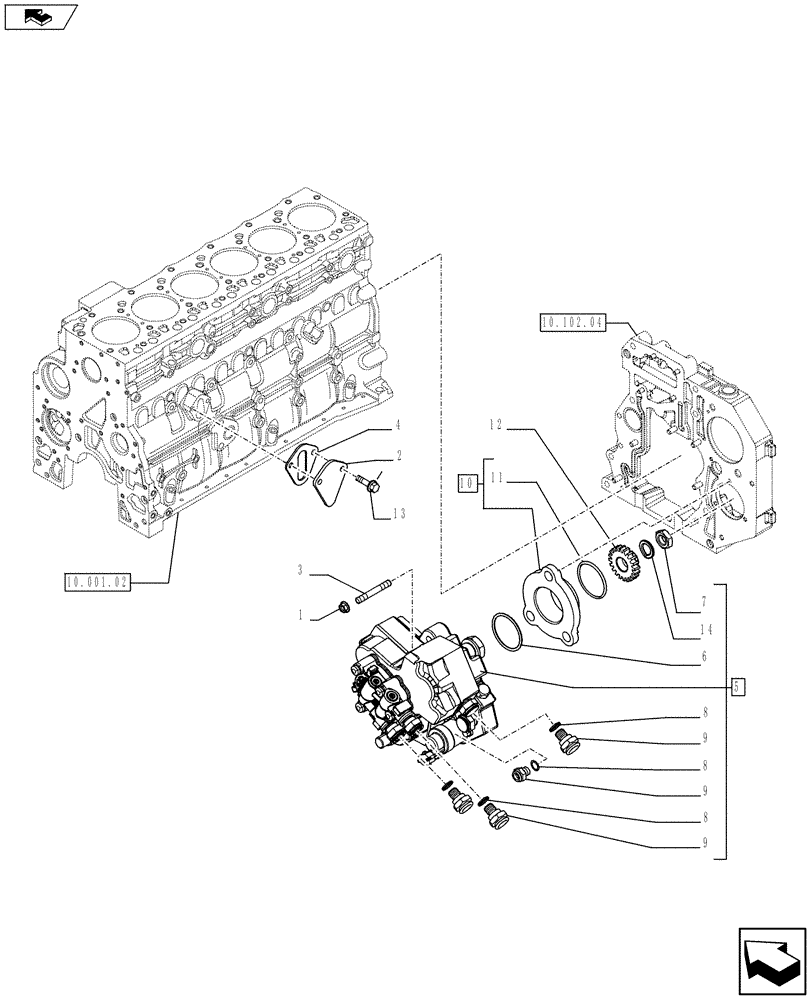

Запчасти Case F4HFE613S A003 (10.247.01) - INJECTION PUMP (504041280) (10) - ENGINE

1

4899003

FLANGE NUT,M8 x 1.25

3шт.

2

4896952

COVER

1шт.

3

16747224

STUD

M8 x 1,25 x 50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

84385110

FUEL INJECTION PUMP

ASSY

1шт.

84385110R

REMAN-INJECTION PUMP

F4HFE613S*A003 ENGINE 504386128 - YN02P00090P1, SK210-9 ACERA MARK 9 EXCAVATOR - TIER 4, ASN YQ13U5200 - (10/2012 -) (10/11-)

1шт.

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

1шт.

8

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

4шт.

10

2852804

HUB

1шт.

11

2852805

O-RING,2.6mm Thk x 72.6mm ID

1шт.

12

4893389

DRIVEN GEAR,27T

1шт.

13

16586324

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

2шт.

14

4890635

SPRING WASHER

1шт.
