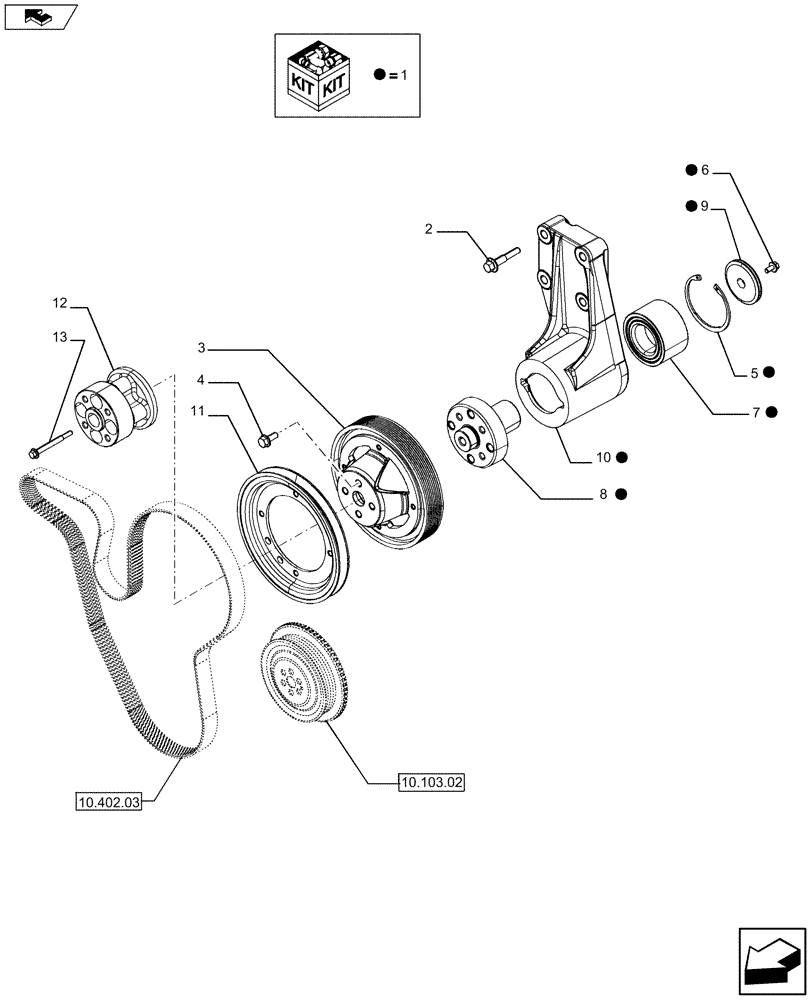

Запчасти Case F4HFE613S A002 (10.414.01) - FAN DRIVE (2854977 - 2855880 - 2855284) (10) - ENGINE

1

2855881

FAN HOUSING

ASSY

1шт.

2

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

4шт.

3

2853233

PULLEY,178mm OD

1шт.

4

16586324

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

4шт.

5

2852171

SNAP RING

1шт.

6

16592824

BOLT,M10 x 1.5 x 70mm

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

4892426

HUB

1шт.

9

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

10

2855882

BRACKET

1шт.

11

2853447

PULLEY,228mm OD

1шт.

12

2854320

SPACER

1шт.

13

4899109

SCREW,Hex, M10 x 1.5 x 80

4шт.
