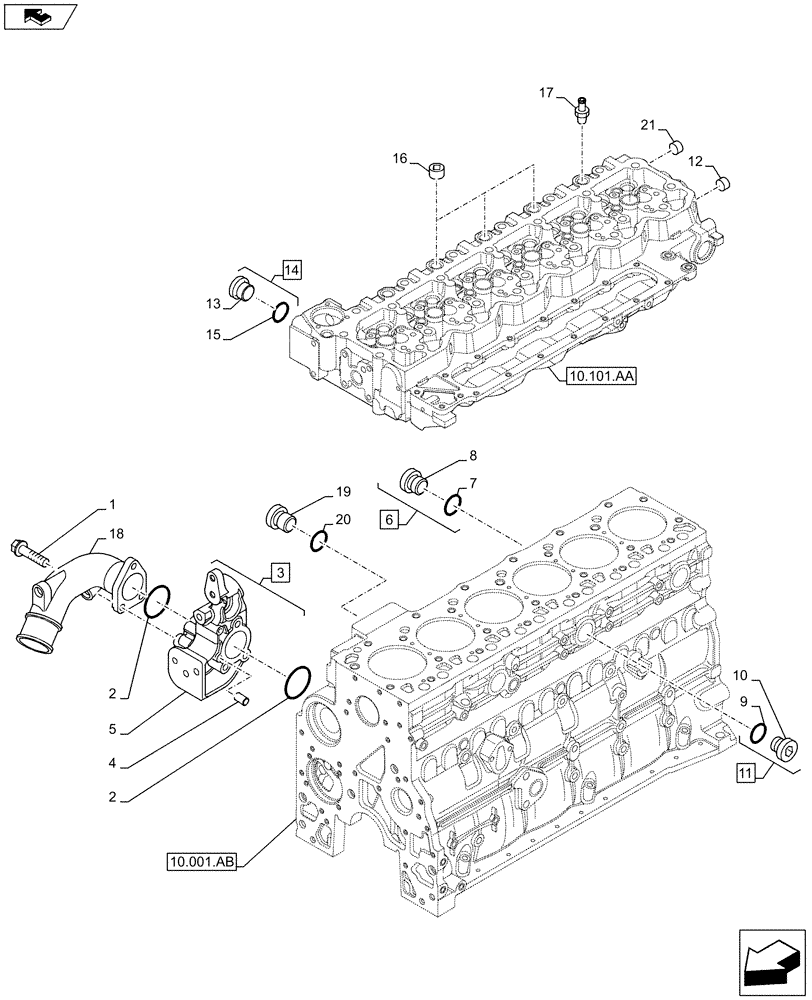

Запчасти Case F4HFE613R B006 (10.400.AE) - COOLING SYSTEM LINE (10) - ENGINE

1

2852325

SCREW

M10 x 1.5 x 80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

47536450

SUPPORT

1шт.

4

98405182

DOWEL

2шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 7, 8

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

ID = 15.3 x 2.2

2шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

ID = 13.3 x 2.2

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

11

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 9, 10

1шт.

12

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 13, 15

1шт.

15

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

ID = 19.3 x 2.2

1шт.

16

4895078

PIPE PLUG,1/2"-14

3шт.

17

47565455

FITTING,M12 x 1.5 x 20mm D

1шт.

18

2852468

TUBE

1шт.

19

2852496

PLUG,M18 x 1.5

2шт.

20

4899824

SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk

2шт.

21

2854491

PLUG,Taper Pipe, Hex, 1/4" - 18 x 14.224mm

PLUG-THREADED

1шт.
