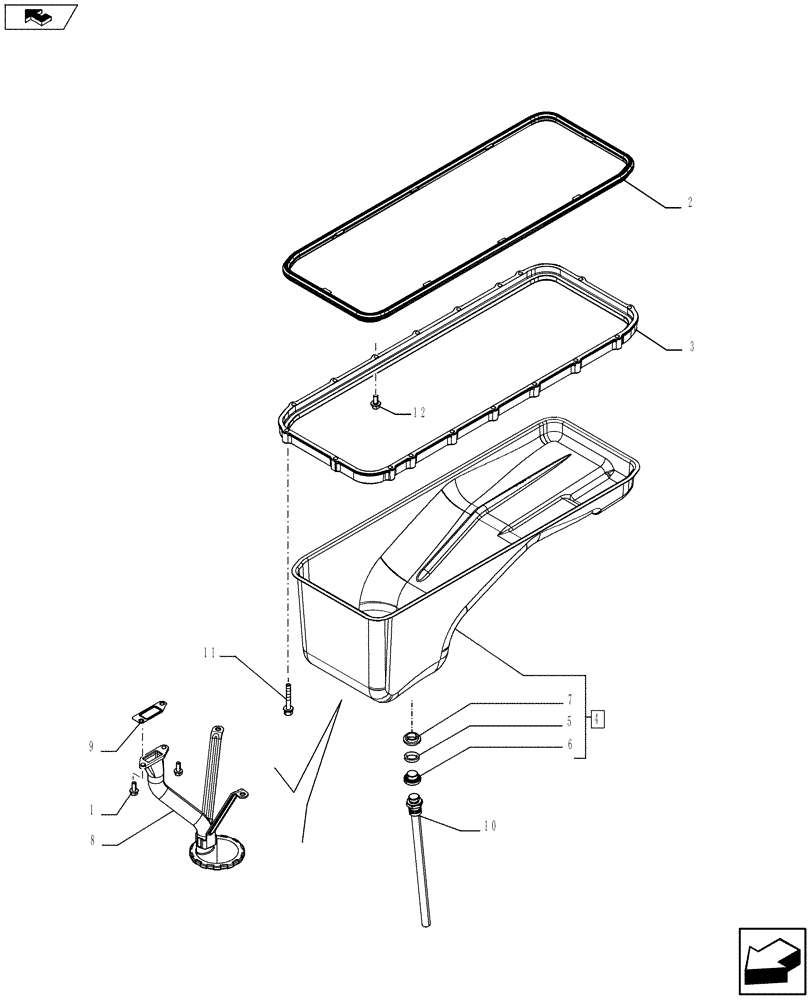

Запчасти Case F4HFE613R A004 (10.102.01) - ENGINE OIL SUMP (504010891) (10) - ENGINE

1

16586324

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

2шт.

2

4897861

OIL PAN GASKET SET,17.3mm Thk

1шт.

3

4897858

SPACER

1шт.

4

2852308

ENGINE OIL PAN

1шт.

5

4895584

O-RING,0.924mm ID x 0.103mm Width

1шт.

6

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

84343612

FILTER STRAINER

1шт.

9

4898301

GASKET,0.42mm Thk

1шт.

10

2853363

DRAIN

1шт.

11

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

12

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

1шт.
