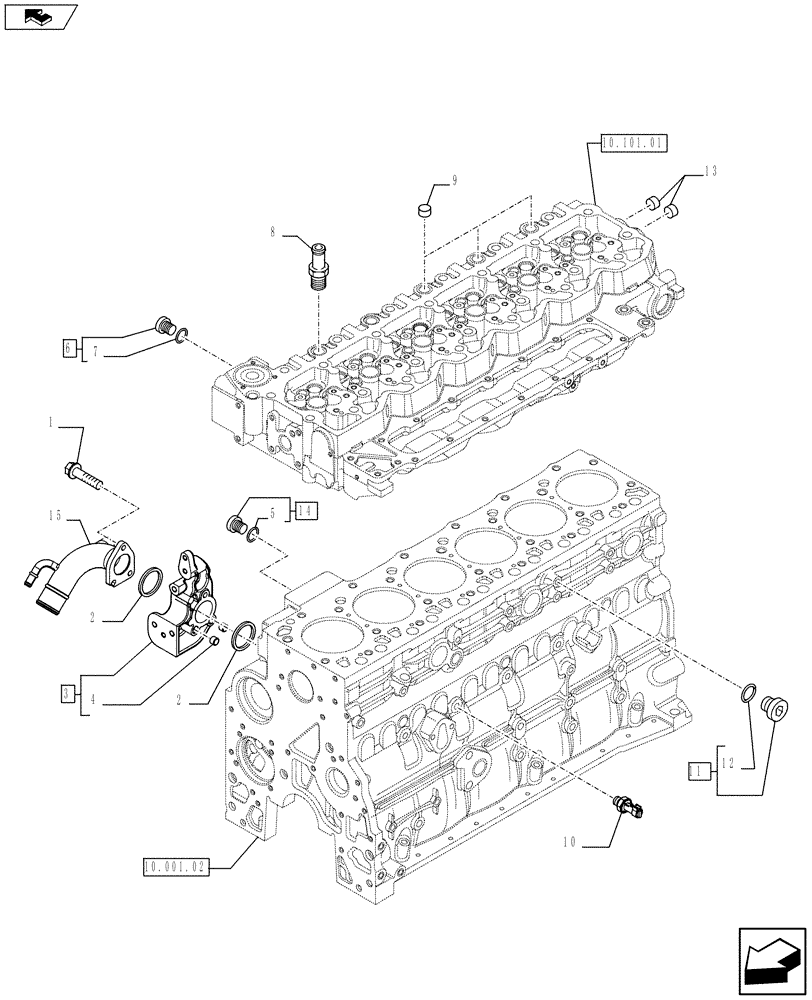

Запчасти Case F4HFE613R A003 (10.400.01) - PIPING - ENGINE COOLING SYSTEM (504122685 - 504259533 - 504199747 - 4891480 - 504358254) ENGINE COMPONENTS

1

16592924

SCREW,M10 x 1.5 x 80mm

M10 x 130

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2852392

SUPPORT

ASSY

1шт.

4

98405182

DOWEL

2шт.

5

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

6

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY

1шт.

7

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

8

4896924

HYD CONNECTOR

1шт.

9

4895078

PIPE PLUG,1/2"-14

3шт.

10

4895118

FITTING

1шт.

11

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

12

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

13

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

14

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY

1шт.

15

84370315

PIPE

1шт.
