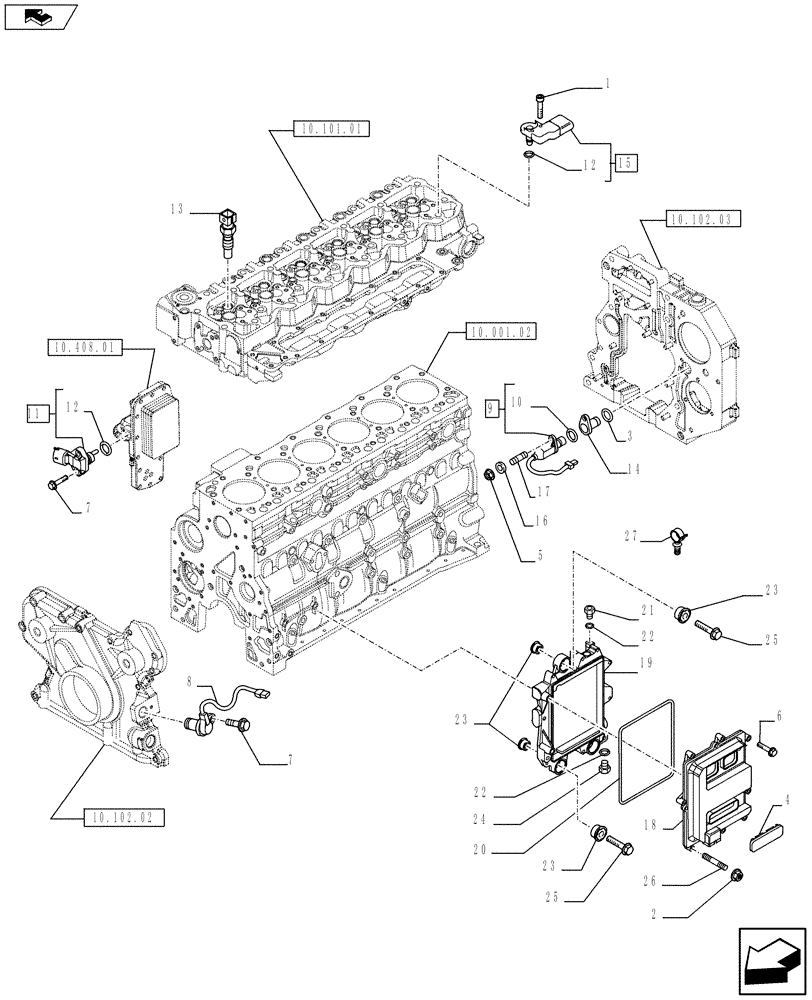

Запчасти Case F4HFE613P A003 (55.440.01) - ELECTRONIC INJECTION (504092213) ELECTRICAL AND HYDRAULIC COMPONENTS

1

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

1шт.

2

4899057

FLANGE NUT,M6

1шт.

3

17278781

O-RING

D. 23.5mm SP=1.7

1шт.

4

504043102

PLUG

1шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

M6 x 1

1шт.

6

16586021

SCREW,M6 x 30mm

M6 x 30

7шт.

7

4899110

SCREW,Hex Flg, M6 x 1 x 20

3шт.

8

4890189

SENSOR

(Used for Crankshaft RPM)

1шт.

9

4890190

SENSOR

(Used for Camshaft RPM)

1шт.

10

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

17.17 x 1.78

1шт.

11

Oil Pressure &Temperature

1шт.

12

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

13

4897224

SENSOR

(Used for Fuel, Engine Temp)

1шт.

14

504356683

PIPE COUPLING

1шт.

15

504073323

SENSOR

Air Temperature / Pressure, 4 wire

1шт.

16

4899124

WASHER

1шт.

17

504388426

STUD

1шт.

18

2854594

ECU

1шт.

18

2854594R

REMAN-MODULE

1шт.

18

2854594C

CORE-MODULE

Return Number

1шт.

19

2854596

BRACKET

1шт.

20

504070042

GASKET

1шт.

21

4896542

HYD CONNECTOR,M12 x 1.5 ORB x 6 ORFS

M12 x 1.5

1шт.

22

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

D. 12 x 17 mm SP=1.7

2шт.

23

98498817

ISOLATOR

6шт.

24

4890964

FITTING,M12 x 1.5

1шт.

25

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

3шт.

26

2854593

STUD

1шт.

27

2852486

CABLE CLIP

2шт.
