(10.304.01 01) - OIL PUMP - ENGINE (504099881)

Запчасти Case F4HFE613P A003 (10.304.01 01) - OIL PUMP - ENGINE (504099881) ENGINE COMPONENTS

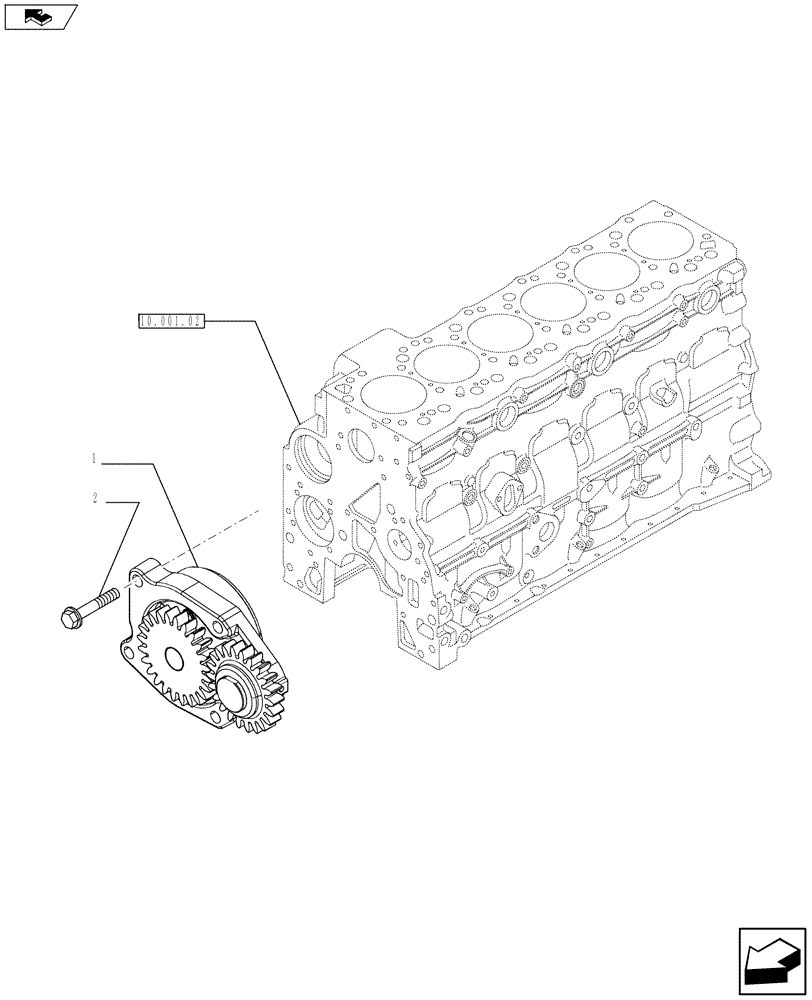

Схема запчастей Case F4HFE613P A003 - (10.304.01 01) - OIL PUMP - ENGINE (504099881) ENGINE COMPONENTS
2
home
10.001.02
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4897481

ENGINE OIL PUMP

1шт.

4897481R

REMAN-ENG OIL PUMP

F4HFE613P*A003 - ENGINE 504386130-LQ02P00019P1, SK295-9 - TIER 4 (NA) ASN LB07U0900 (2/11-)

1шт.

4897481C

CORE-ENGINE OIL PUMP

Return number

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.

Выбрано товаров: 4
