(10.105.02) - SHORT BLOCK - CONNECTING ROD (5801371818 - 504336352)

Запчасти Case F4HFE613P A003 (10.105.02) - SHORT BLOCK - CONNECTING ROD (5801371818 - 504336352) ENGINE COMPONENTS

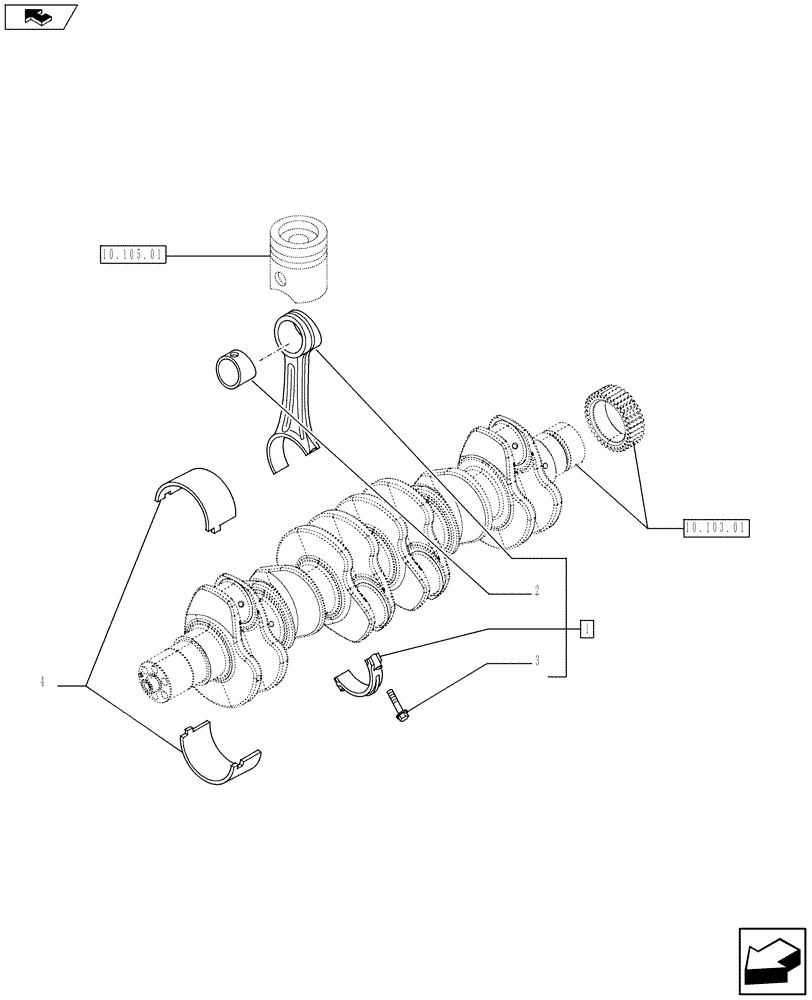

Схема запчастей Case F4HFE613P A003 - (10.105.02) - SHORT BLOCK - CONNECTING ROD (5801371818 - 504336352) ENGINE COMPONENTS
home
2
1
4
10.105.01
3
10.103.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

ASSY

6шт.

2831298R

REMAN-CONNECTING ROD

SK295-9 Acera Mark 9 Tier 4 ASN LB07U0900 (2/11),

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8094961

BEARING SET,(-0.500)

-0,500

6шт.

4

8094960

BEARING SET,(-0.250)

-0,250

6шт.

4

8093882

BEARING SET

6шт.
