Запчасти Case F4HFE613K B002 (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS

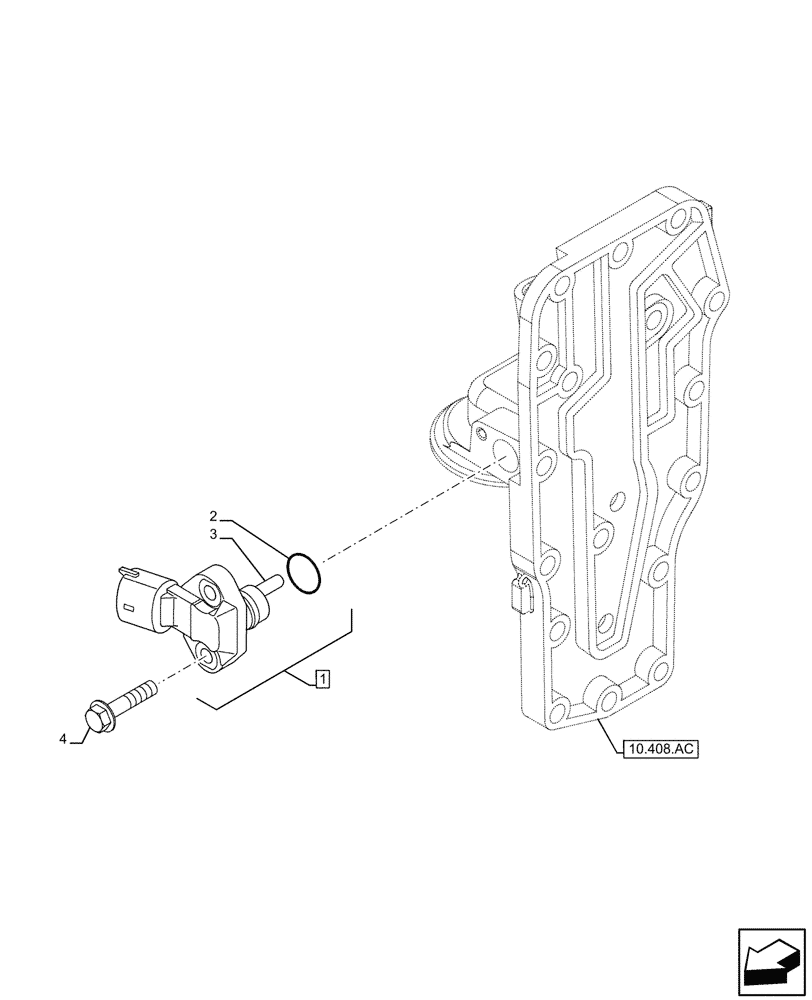

Схема запчастей Case F4HFE613K B002 - (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS
10.408.ao
4
3
1
2

Артикул

Название

Примечание

Количество

1

504358206

ASSY, Incl 2, 3

SWITCH,Pressure

1шт.

2

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

3

NSS

NOT SOLD SEPARAT

Pressure switch sensor, Incl in 1

1шт.

4

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

Выбрано товаров: 4
