(55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR

Запчасти Case F4HFE613G B004 (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS

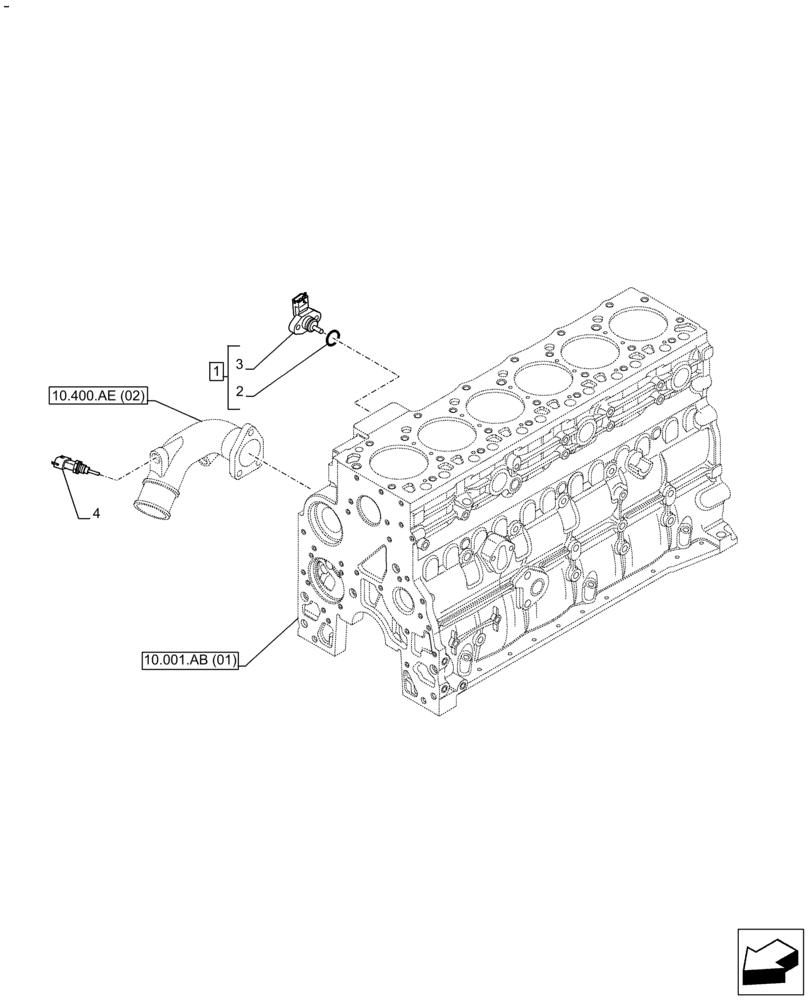

Схема запчастей Case F4HFE613G B004 - (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS
4
2
1
10.001.ab (01)
3
10.400.ae (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2859674

SENSOR,Oil Pressure

ASSY, Incl 2, 3

1шт.

2

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

3

2859675

SENSOR,Oil Temperature

1шт.

4

500382599

SENSOR,Temperature

2шт.

Выбрано товаров: 4
