(10.105.02) - CONNECTING ROD (504336352)

Запчасти Case F4HFE613F E003 (10.105.02) - CONNECTING ROD (504336352) (10) - ENGINE

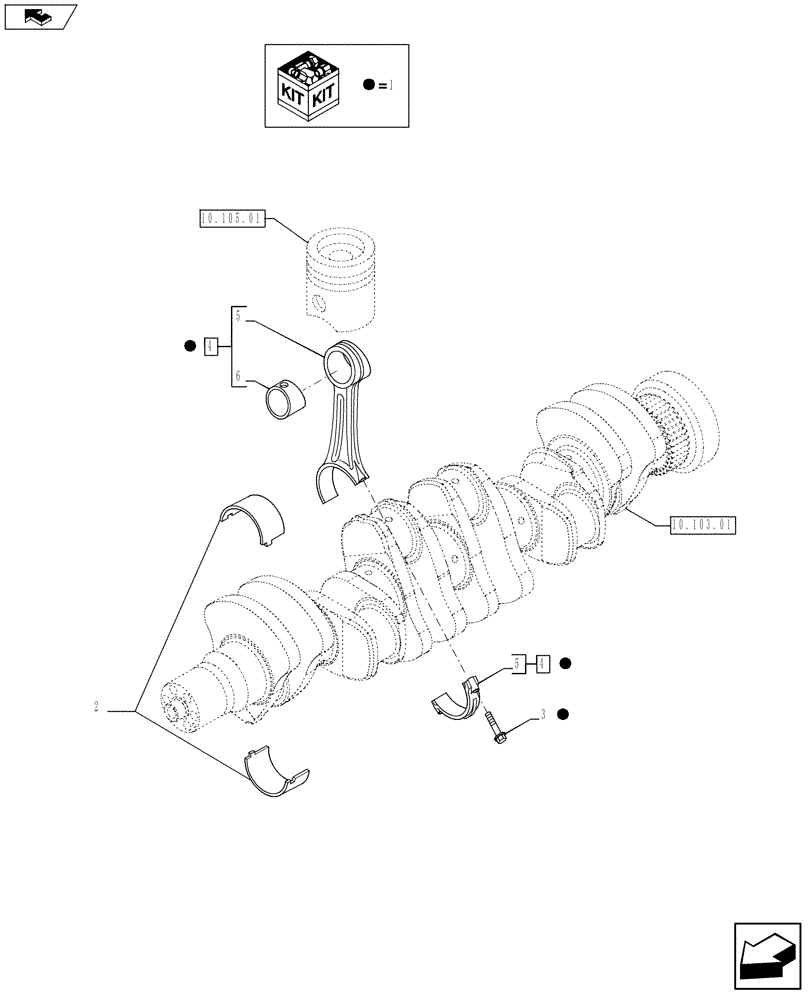

Схема запчастей Case F4HFE613F E003 - (10.105.02) - CONNECTING ROD (504336352) (10) - ENGINE
2
5
10.105.01
1
5
4
10.103.01
3
1
1
4
1
6
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

ASSY

6шт.

2831298R

REMAN-CONNECTING ROD

F4HFE613F*E003 ENGINE 5801398291 - 84359538

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

2856309

CRANKSHAFT BEARING

6шт.

2

4892715

BEARING LINER

BEARING, CON. ROD

6шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

4895747

CONNECTING ROD

ASSY

1шт.

2831298R

REMAN-CONNECTING ROD

F4HFE613F*E003 ENGINE 5801398291 - 84359538 Reman For New P/N 4895747

1шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

5

4895746

1шт.

6

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.
