Запчасти Case F4HFE613E B005 (10.254.AC) - EXHAUST MANIFOLD WITH BRACKET (10) - ENGINE

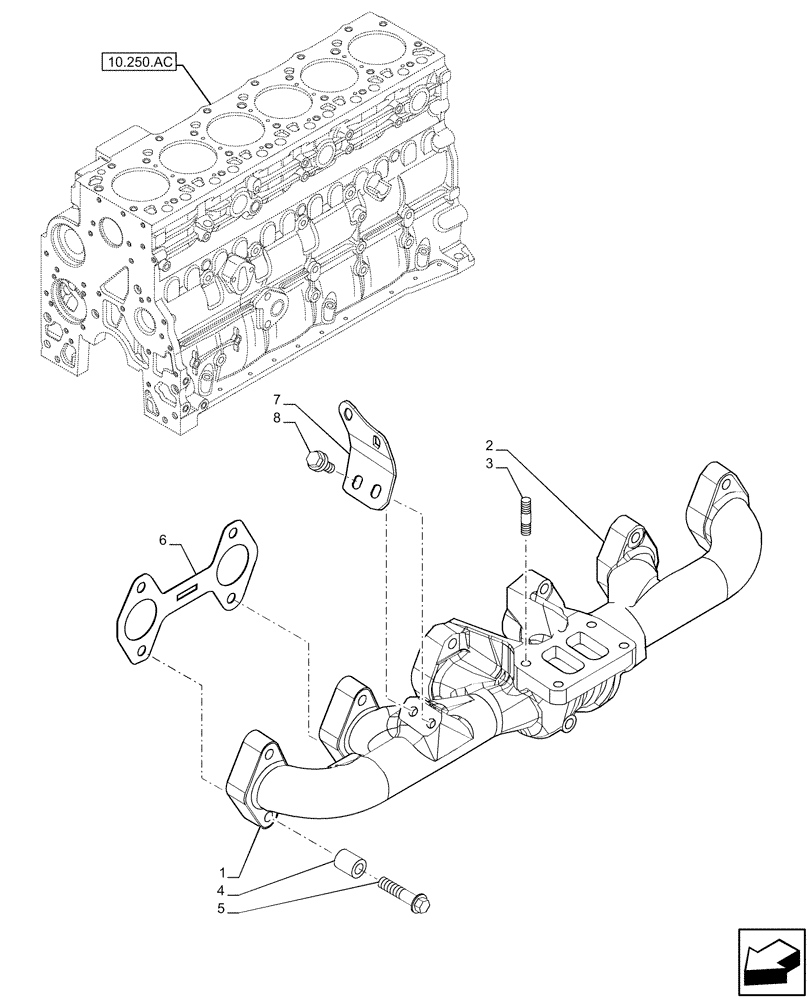

Схема запчастей Case F4HFE613E B005 - (10.254.AC) - EXHAUST MANIFOLD WITH BRACKET (10) - ENGINE
10.250.ac
4
3
5
2
8
1
6
7

Артикул

Название

Примечание

Количество

1

47589669

EXHAUST MANIFOLD

Rear, With Bracket Mount

1шт.

2

47461403

EXHAUST MANIFOLD

Front, W/O Bracket Mount

1шт.

3

4899085

STUD,M10 x 1.5 x 42mm

4шт.

4

47464711

SPACER,11.1mm ID x 19.1mm OD x 25mm L

Manifold Mounting

12шт.

5

2852744

SCREW,Flng, M10 x 1.5 x 65mm

12шт.

6

2853800

MANIFOLD GASKET,1.4mm Thk

3шт.

7

47589671

BRACKET

Fastening

1шт.

8

47589673

SCREW,Hex Washer Head, M8 x 25mm L

Captive Washer

4шт.

Выбрано товаров: 8
