(55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR

Запчасти Case F4HFE613D B006 (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS

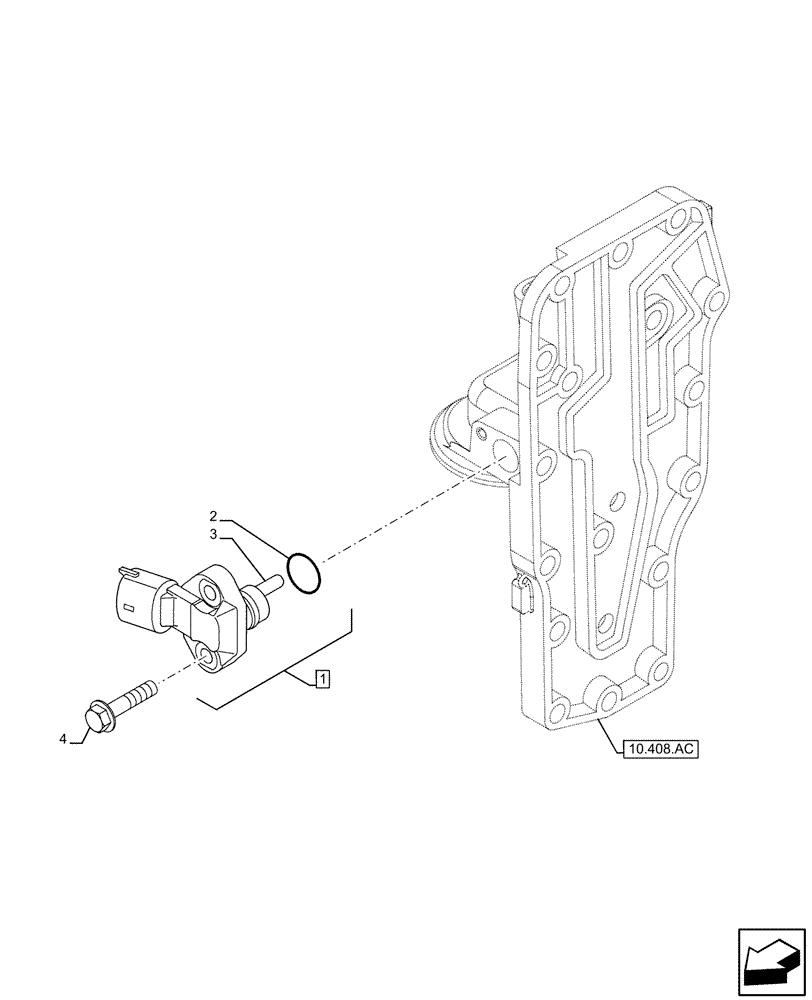

Схема запчастей Case F4HFE613D B006 - (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS
1
10.408.ao
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2859674

SENSOR,Oil Pressure

ASSY, Incl 2,3

1шт.

1

504358206

SWITCH,Pressure

1шт.

2

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

2

17278281

O-RING

1шт.

2

17916280

SEAL

1шт.

2

42546555

O-RING

1шт.

3

2859675

SENSOR,Oil Temperature

1шт.

3

504372225

SENSOR,Temperature / Pressure

1шт.

4

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

2шт.
