Запчасти Case F4HFE613D B006 (10.001.AB[01]) - CRANKCASE (10) - ENGINE

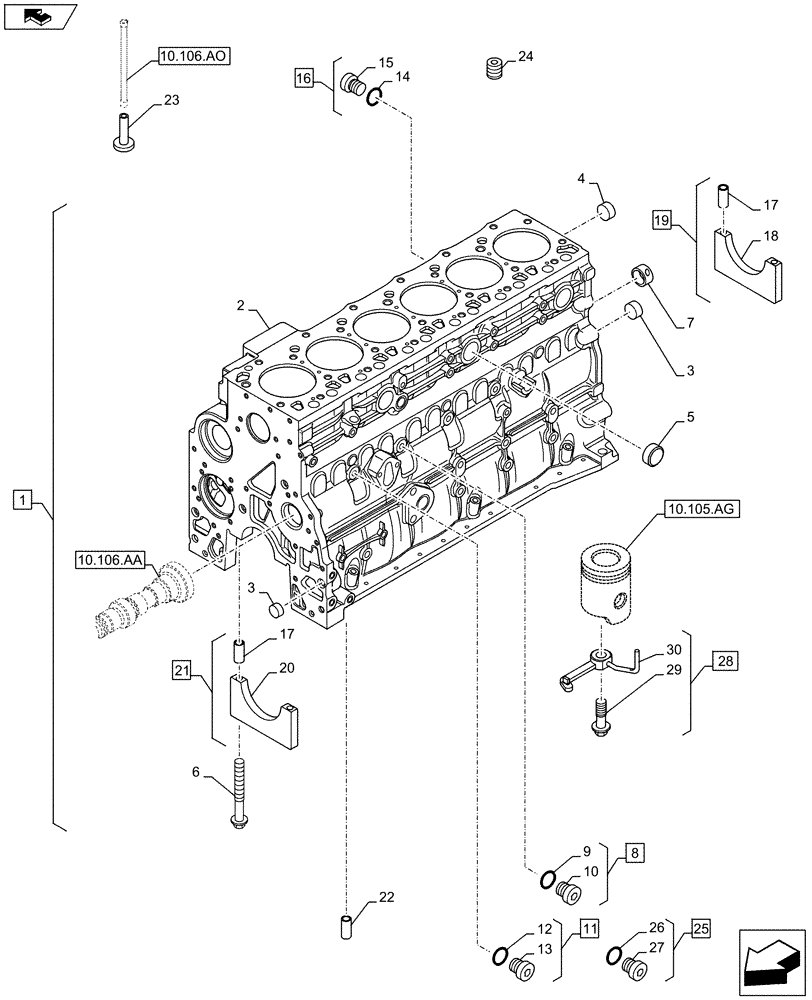

Схема запчастей Case F4HFE613D B006 - (10.001.AB[01]) - CRANKCASE (10) - ENGINE
21
3
12
4
8
17
15
28
3
29
23
1
25
6
27
10.105.ag
10
16
9
20
19
2
13
7
10.106.aa
5
30
24
10.106.ao
11
17
26
14
18
22

Артикул

Название

Примечание

Количество

1

47651232

CYLINDER BLOCK

ASSY, Incl 2 - 7, 19, 21

1шт.

2

47572835

SHORT ENGINE

1шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

6шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

14шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

8

4895605

HEX SOCKET PLUG,M14 x 1.5

ASSY, Incl 9, 10

2шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

10

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

11

4899009

PLUG,M10 x1

ASSY, Incl 12, 13

2шт.

12

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

14

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

15

NSS

NOT SOLD SEPARAT

Hex Socket Plug M18 x 1.15

1шт.

16

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 14, 15

3шт.

17

4899026

DOWEL,M18 x 10

4шт.

18

NSS

NOT SOLD SEPARAT

Bearing Cap, Incl in 19

1шт.

19

NSS

NOT SOLD SEPARAT

ASSY, Bearing, Incl 17, 18, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Bearing Cap, Incl in 21

1шт.

21

NSS

NOT SOLD SEPARAT

ASSY, Bearing, Incl 17, 20, incl in 1

6шт.

22

4895049

DOWEL,M16.05 x 10

2шт.

23

4899803

TAPPET

12шт.

24

NS

NOT SERVICED

Pipe Plug

1шт.

25

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

25

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 26, 27

1шт.

26

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

27

NSS

NOT SOLD SEPARAT

Plug, Incl in 25

1шт.

28

2852202

NOZZLE, PISTON COOLI

ASSY, Incl 29, 30

6шт.

29

4894218

SCREW,Special, M8 x 20

1шт.

30

2852203

NOZZLE, PISTON COOLI

1шт.

Выбрано товаров: 31
