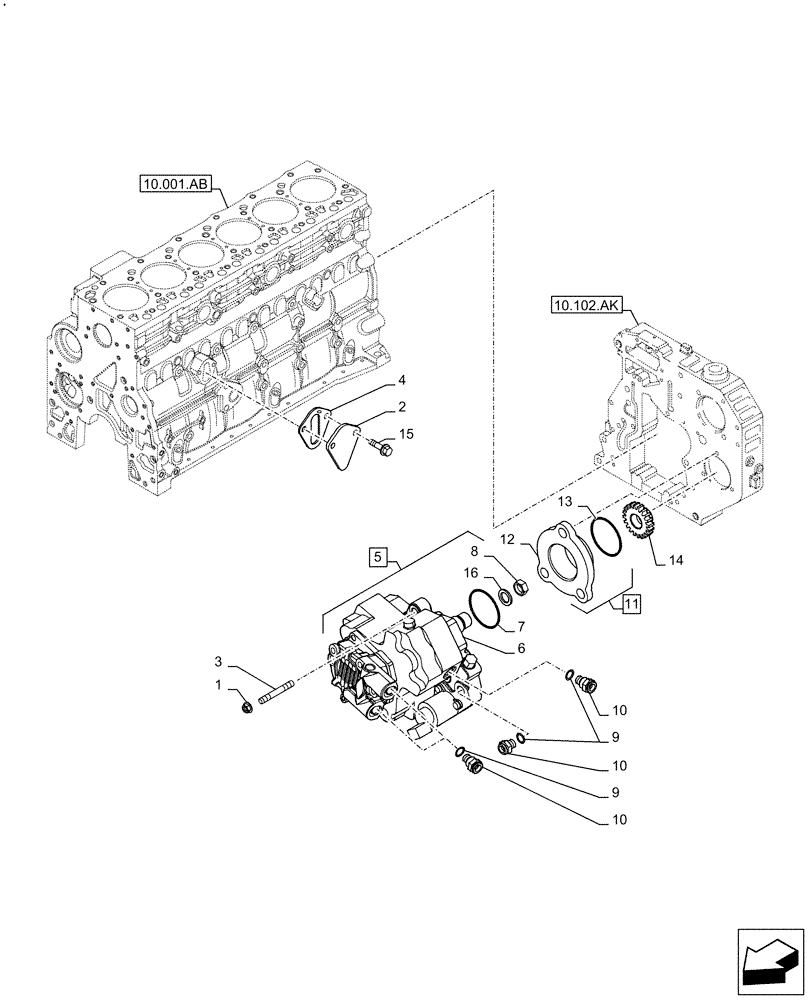

Запчасти Case F4HFE613C B004 (10.218.AQ) - FUEL INJECTION PUMP (10) - ENGINE

1

4899003

FLANGE NUT,M8 x 1.25

M8 x 1.25

3шт.

2

4896952

COVER

1шт.

3

2852488

STUD,M8 x 1,25 x 50mm

M8 x 1.25 x 50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

47582622

FUEL INJECTION PUMP

ASSY, Incl 6 - 10, 16

1шт.

6

NSS

NOT SOLD SEPARAT

Pump, Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING; Incl in 5

1шт.

8

NSS

NOT SOLD SEPARAT

NUT; Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

SEALING WASHER; Incl in 5

4шт.

10

2854563

FITTING

M12 x 1.5

4шт.

11

2852804

HUB

ASSY, Incl 12, 13

1шт.

12

2852806

ADAPTER

1шт.

13

2852805

O-RING,2.6mm Thk x 72.6mm ID

ID = 72.69 x 2.62

1шт.

14

4893389

DRIVEN GEAR,27T

1шт.

15

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20

2шт.

16

NSS

NOT SOLD SEPARAT

SPRING WASHER; Incl in 5

1шт.
