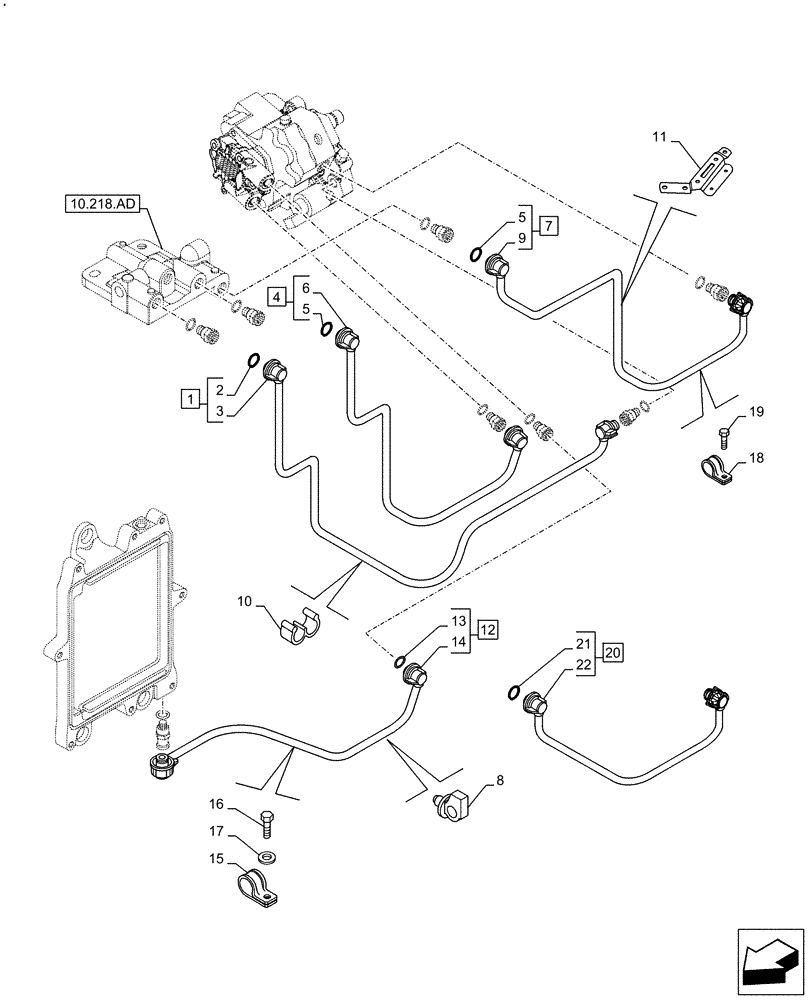

Запчасти Case F4HFE613C B004 (10.210.AF) - FUEL LINE (10) - ENGINE

1

47529767

FUEL TUBE

ASSY, Incl 2, 3

1шт.

2

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

4

47529779

PIPE

ASSY, Incl 5, 6

1шт.

5

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

4шт.

6

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.

7

47530099

PIPE

ASSY, Incl 5, 9

1шт.

8

4897277

SCREW

2шт.

9

NSS

NOT SOLD SEPARAT

Pipe, Incl in 7

1шт.

10

47528951

BRACKET

2шт.

11

47589671

BRACKET

1шт.

12

47545297

ASSY, Incl 14, 15

1шт.

13

4890929

O-RING,3mm Thk x 11mm ID

2шт.

14

NSS

NOT SOLD SEPARAT

Pipe, Incl in 13

1шт.

15

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

17

2856006

SPACER

1шт.

18

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

19

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

20

47530101

PIPE

ASSY; Incl 21-22

1шт.

21

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

22

NSS

NOT SOLD SEPARAT

FITTING; Incl in 20

2шт.
