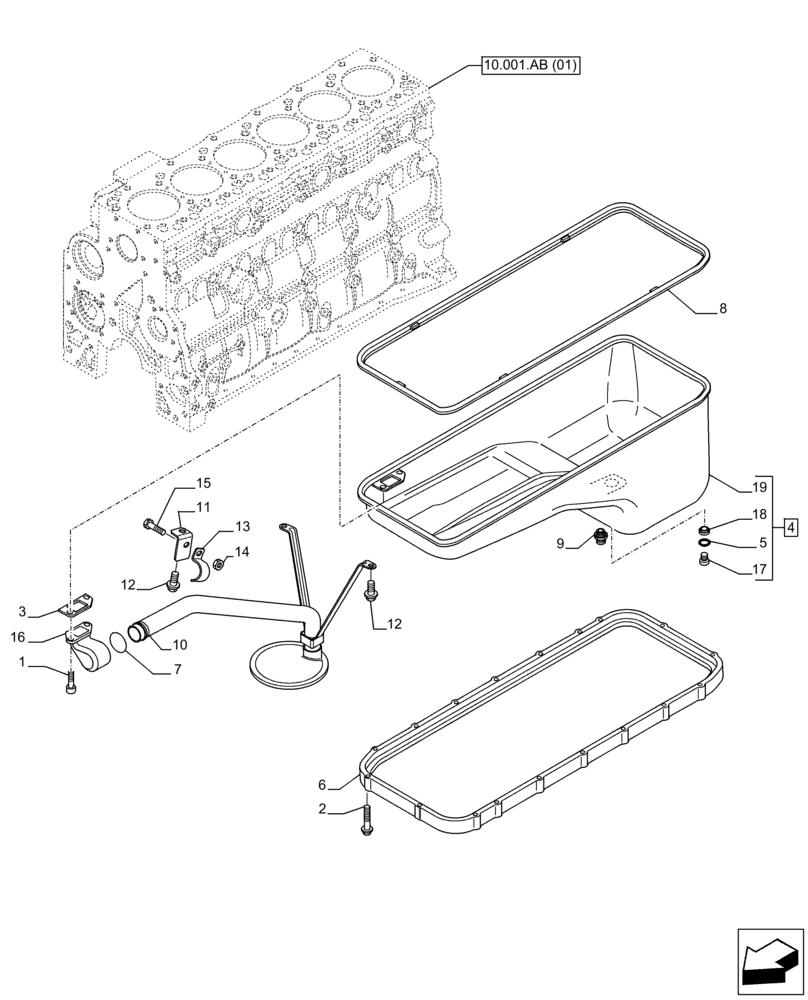

Запчасти Case F4HFE613B B006 (10.102.AP) - ENGINE, OIL PAN (10) - ENGINE

1

2852660

BOLT

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852308

ENGINE OIL PAN

ASSY, Incl 5, 17 - 19

1шт.

5

4895584

O-RING,0.924mm ID x 0.103mm Width

ALTERNATIVE WITH 2853728 FOR CDC USE.

1шт.

5

2853728

O-RING,M23.47 ID x 2.62 Thk

ALTERNATIVE WITH 4895584 FOR IVECO TURIN USE.

1шт.

6

4897858

SPACER

1шт.

7

2852662

SEALING RING

1шт.

8

47590191

GASKET

1шт.

9

2853894

DRAIN PLUG

1шт.

10

2852654

SUCTION PIPE

1шт.

11

2852664

BRACKET

1шт.

12

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

3шт.

13

2852663

CLAMP

1шт.

14

4899003

FLANGE NUT,M8 x 1.25

1шт.

15

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.

16

2856428

COLLAR CLAMP

1шт.

17

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

19

NSS

NOT SOLD SEPARAT

Pan, Incl in 4

1шт.
