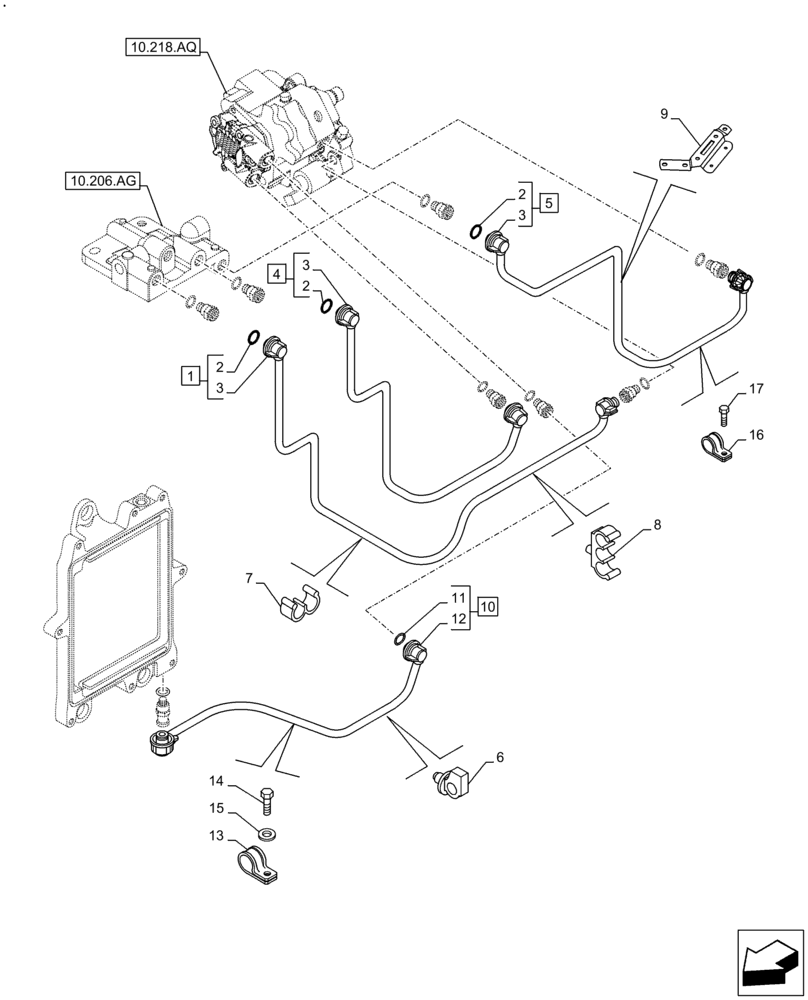

Запчасти Case F4HFE613A B004 (10.210.AF) - FUEL LINE (10) - ENGINE

1

47528926

PIPE

Assy, Incl 2, 3

1шт.

2

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

8шт.

3

NSS

NOT SOLD SEPARAT

ELEC Connector, Incl in 1

5шт.

4

47528927

PIPE

Assy, Incl 2, 3

1шт.

5

47528929

PIPE

Assy, Incl 2, 3

1шт.

6

4897277

SCREW

2шт.

7

47528951

BRACKET

2шт.

8

47528950

BRACKET

3шт.

9

47528949

BRACKET

1шт.

10

47542097

PIPE

Assy, Incl 11, 12

1шт.

11

4890929

O-RING,3mm Thk x 11mm ID

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

13

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

15

2856006

SPACER

1шт.

16

10441390

COLLAR,12mm, Coat, 7mm Bolt Hole, P Type

1шт.

17

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.
