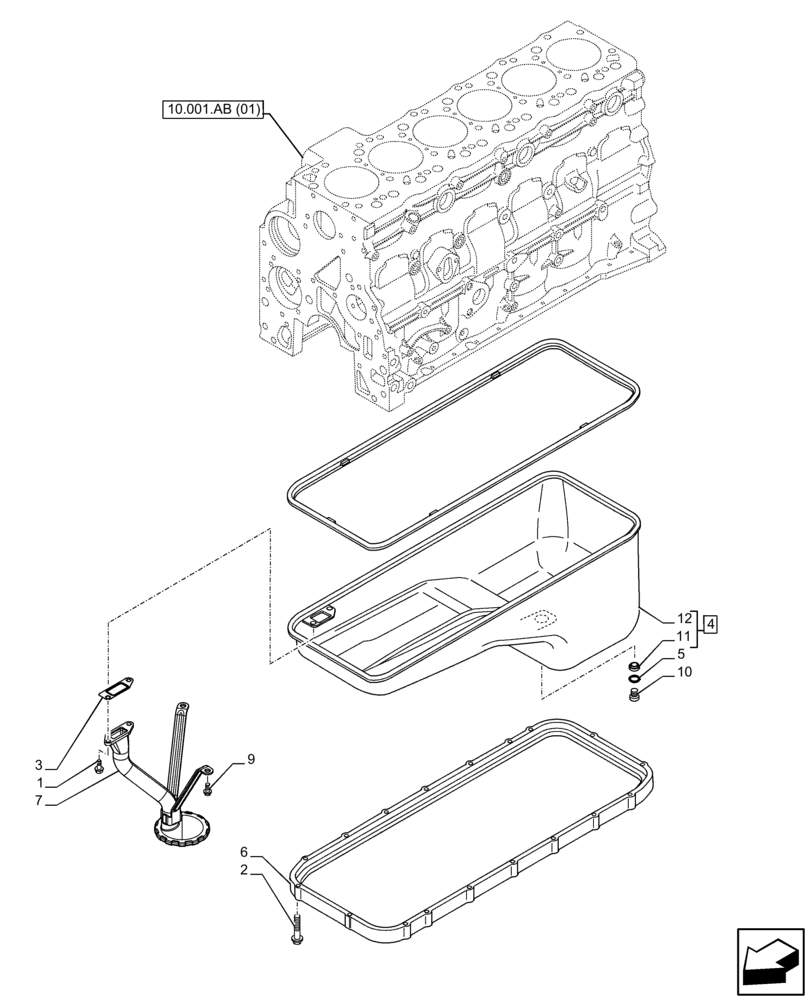

Запчасти Case F4HFE613A B004 (10.102.AP) - ENGINE, OIL PAN (10) - ENGINE

1

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

4898036

ENGINE OIL PAN

ASSY, Incl 5, 10 - 12

1шт.

5

2830546

SEALING WASHER

O-Ring

1шт.

6

4897858

SPACER

1шт.

7

2853306

SUCTION PIPE

1шт.

8

47590191

GASKET

1шт.

9

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

2шт.

10

4895577

PLUG

1шт.

11

NSS

NOT SOLD SEPARAT

Bush, Incl in 4

1шт.

12

NS

NOT SERVICED

Pan, Incl in 4

1шт.
