(55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR

Запчасти Case F4HFE6131 B003 (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS

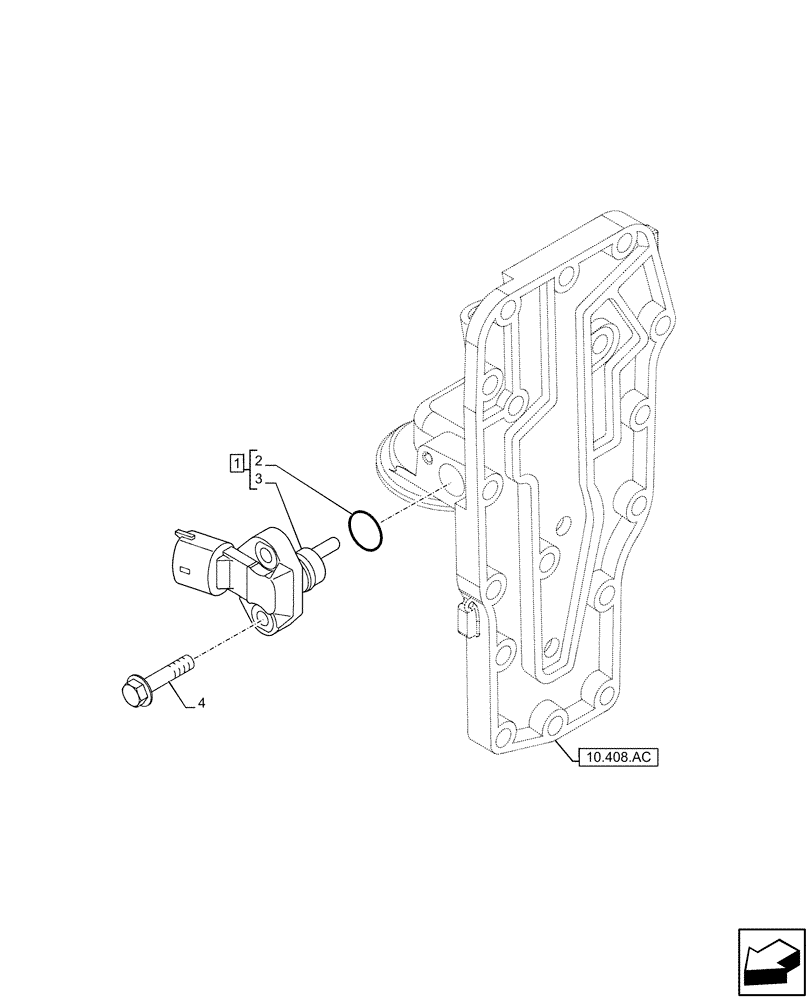

Схема запчастей Case F4HFE6131 B003 - (55.013.AD) - ENGINE OIL PRESSURE AND TEMPERATURE SENSOR (55) - ELECTRICAL SYSTEMS
10.408.ac
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2859674

SENSOR,Oil Pressure

ASSY, Incl 2, 3

1шт.

2

2858095

O-RING

1шт.

3

2859675

SENSOR,Oil Temperature

Sensor, Incl in 1

1шт.

4

NS

NOT SERVICED

Bolt

2шт.
