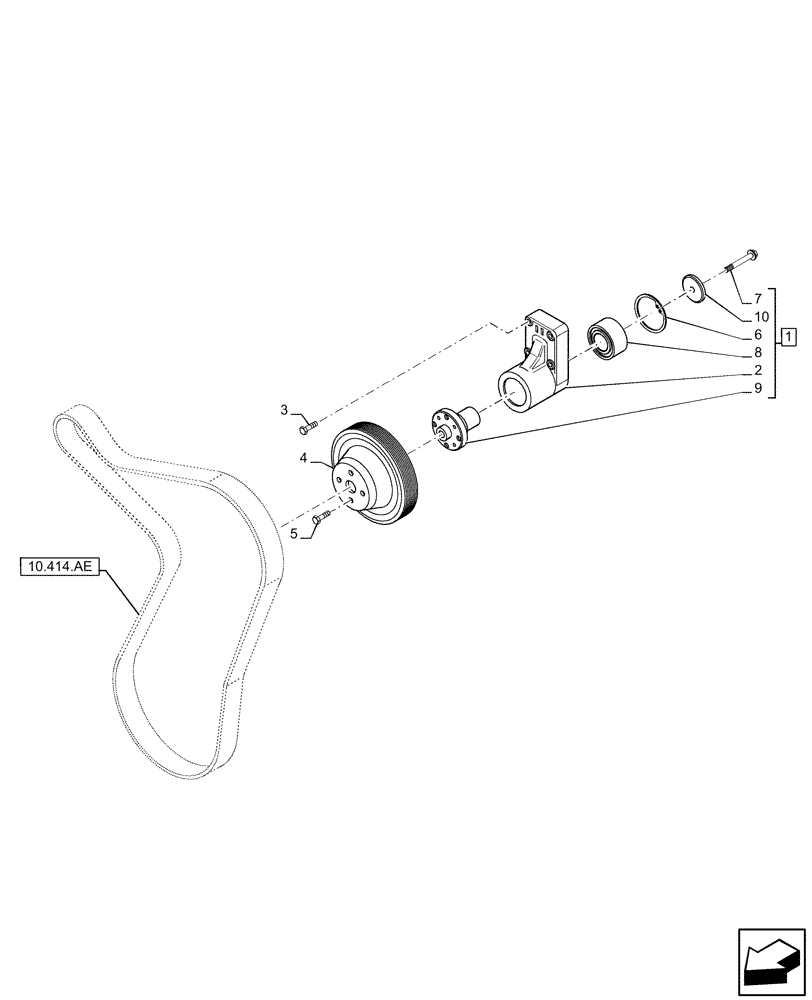

Запчасти Case F4HFE6131 B003 (10.414.AM) - FAN DRIVE PULLEY (10) - ENGINE

1

2852170

SUPPORT

ASSY, Fan, Incl 2, 6 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl with 1

1шт.

3

4899053

SCREW,Hex Flg, M8 x 45

4шт.

4

4895301

PULLEY

Fan

1шт.

5

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

4шт.

6

2852171

SNAP RING

Incl with 1

1шт.

7

2852172

BOLT,Flng, M10 x 1.5 x 70mm

Incl with 1

1шт.

8

2859567

BALL BEARING

Incl with 1

1шт.

9

4892426

HUB

Pulley, Incl with 1

1шт.

10

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

Incl with 1

1шт.
