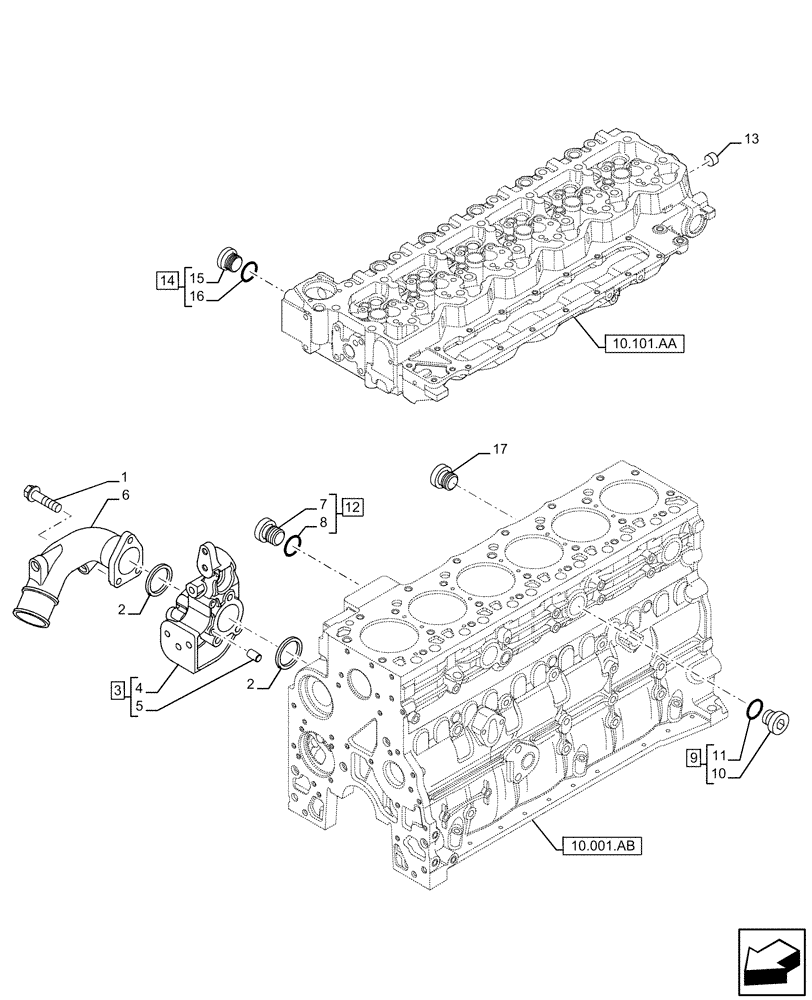

Запчасти Case F4HFE6131 B003 (10.400.AE) - PIPING - ENGINE COOLING SYSTEM (COOLANT HEATING LINES) (10) - ENGINE

1

2854424

SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm

1шт.

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

2шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

47589691

SUPPORT

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

5

98405182

DOWEL

2шт.

6

NS

NOT SERVICED

Rigid Tube

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

1шт.

8

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

9

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, incl in 9

1шт.

11

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

12

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 7, 8

1шт.

13

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

16

4895082

O-RING,19.3mm ID x 2.2mm Width

1шт.

17

NS

NOT SERVICED

Plug

1шт.
