Запчасти Case F4HFE6131 B003 (10.304.AS) - DIPSTICK, ENGINE OIL (10) - ENGINE

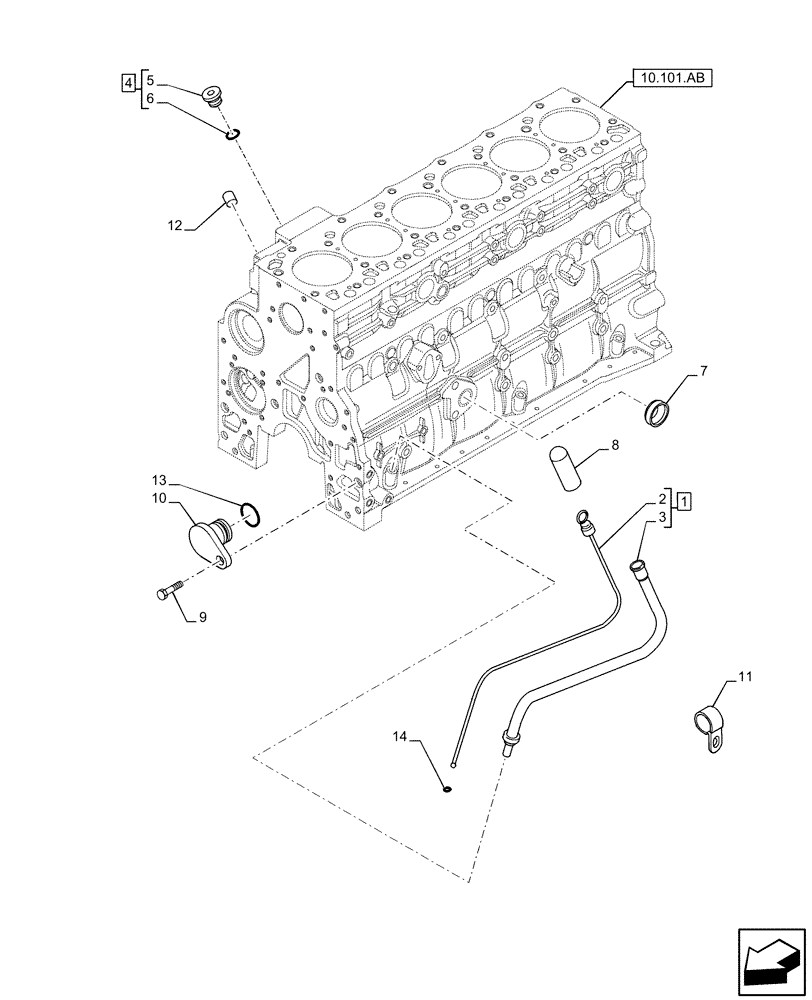

Схема запчастей Case F4HFE6131 B003 - (10.304.AS) - DIPSTICK, ENGINE OIL (10) - ENGINE
10.101.ab
3
7
9
11
2
13
1
8
14
12
6
5
10
4

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

ASSY, Dipstick Oil Level, Incl 2 - 3

1шт.

2

NS

NOT SERVICED

Dipstick, Incl in 1

1шт.

3

NS

NOT SERVICED

Tube, Incl in 1

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

ASSY, Incl 5 - 6

2шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

6

4895610

O-RING,2.2mm Thk x 9.3mm ID

Incl with 4

1шт.

7

4895037

EXPANSION PLUG,32.03mm

1шт.

8

NS

NOT SERVICED

Plastic Plug

1шт.

9

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 1mm x 18mm

1шт.

10

2855059

PLUG

Alternate Filler Neck

1шт.

11

NS

NOT SERVICED

Bracket

1шт.

12

4895406

EXPANSION PLUG,9.8mm OD

2шт.

13

2852801

O-RING

Oil Filler Plug

1шт.

14

NS

NOT SERVICED

O-ring

1шт.

Выбрано товаров: 14
