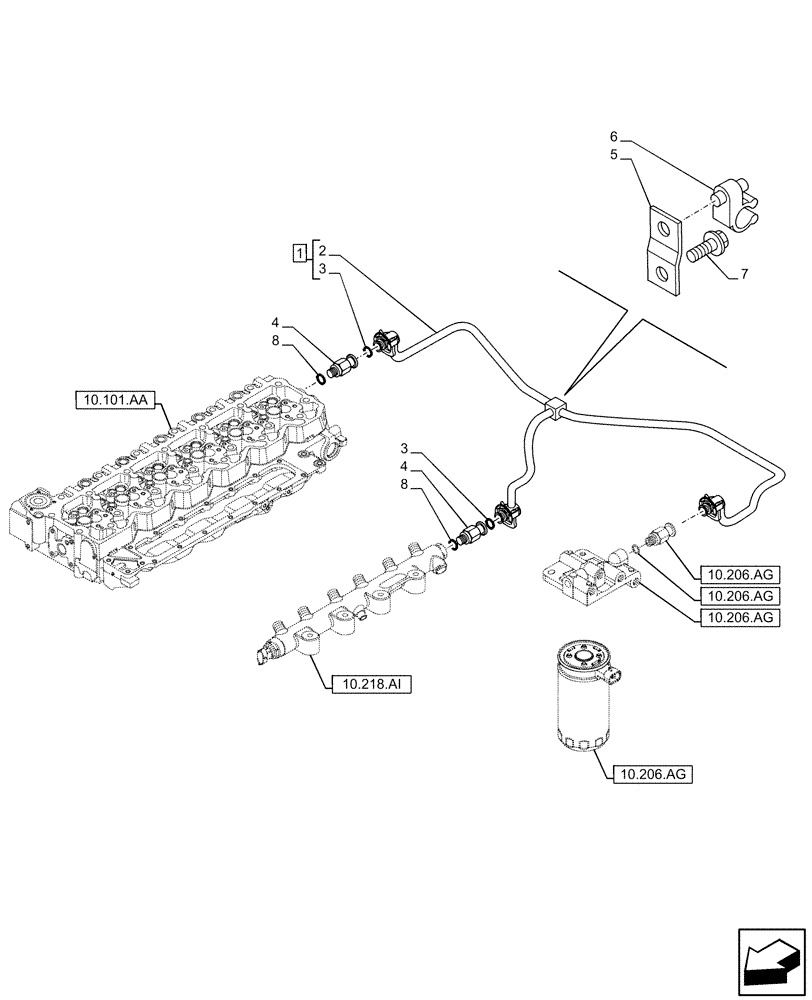

Запчасти Case F4HFE6131 B003 (10.210.AS) - FUEL RETURN LINES (10) - ENGINE

1

2855336

RETURN PIPE

ASSY, Fuel Drain, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Fuel Drain, Incl 1

1шт.

3

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

4

2854572

90 ELBOW

2шт.

5

4896996

CLAMP,8mm D Clamping pipes

3шт.

6

47535327

FITTING

1шт.

7

NS

NOT SERVICED

Screw

1шт.

8

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.
