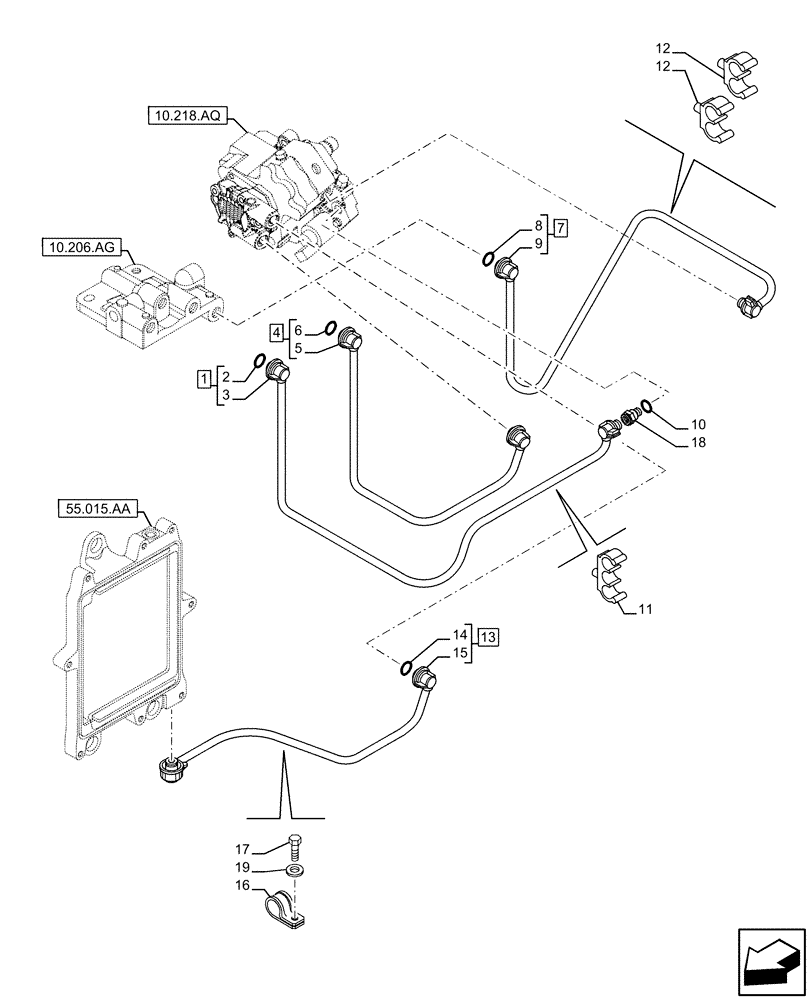

Запчасти Case F4HFE6131 B003 (10.210.AF) - FUEL SUPPLY LINES (10) - ENGINE

1

47530099

PIPE

ASSY, Injection Pump to Filter

1шт.

2

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

47529779

PIPE

ASSY, Inlet to Inj. Pump

1шт.

5

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

47530101

PIPE

ASSY, Return to Tank

1шт.

8

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

4890929

O-RING,3mm Thk x 11mm ID

1шт.

11

47529785

CLIP

1шт.

12

47528951

BRACKET

2шт.

13

47542097

PIPE

ASSY, ECM to Pump, Incl 14, 15

1шт.

14

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

15

NSS

NOT SOLD SEPARAT

Tube

1шт.

16

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

18

2854572

90 ELBOW

1шт.

19

2856006

SPACER

1шт.
